Class A 2-way diverter with 15dB loss

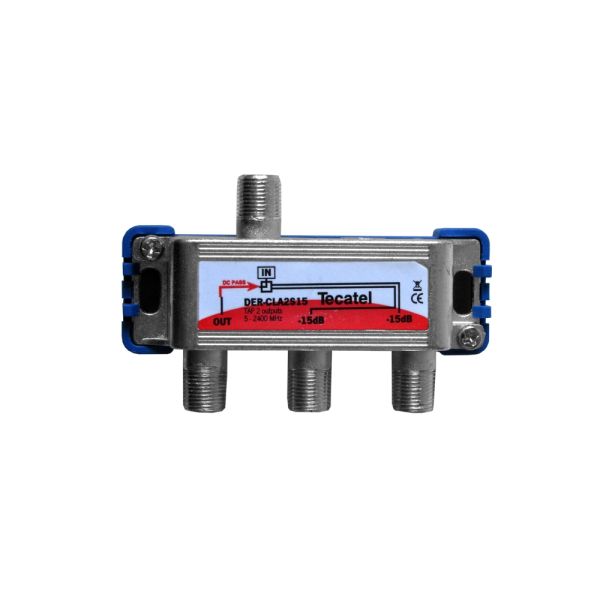

The DER-CLA2S15 wiring harness of Tecatel has 2 branches to distribute the signal coming from the head for two houses of the same plant and another exit of passage for the bottom plant.

This wrapper can be used in both a satellite and terrestrial installation, as it allows the passage of signal from both frequencies.

What are the technical characteristics of the DER-CLA2S15?

• It has 2 leads.
• Current flow.
• Low insertion losses.
• High quality zamac shield.
• Anticorrosive nickel finish.
• It has an F-type connection.

What is the technical specification of the DER-CLA2S15?

• Loss of bypass of 15dB.
• Loss of insertion:
• 3 dB in the 5-47 MHz band
• 3 dB in the 47-1000 MHz band
• 3.1 dB in the 1000-1750 MHz band
• 3.4 dB in the 1750-2300 MHz band
• 3.5 dB in the 2300-2400 MHz band
• 18 dB Bypass Bypass Recording.
• Dimensions of 78x58x26mm.
• Weight of 75 gr.
• Frequency range of 5-2400 MHz.
• 75 Ω impedance.
• Type F connector.

What is the DER-CLA2S15 shunt used for?

This wand is used in facilities where we want to divide our signal for two houses of the same plant, in this case, due to the loss it has, it will be used in a medium plant such as the 3rd or 4th floor of the building .
