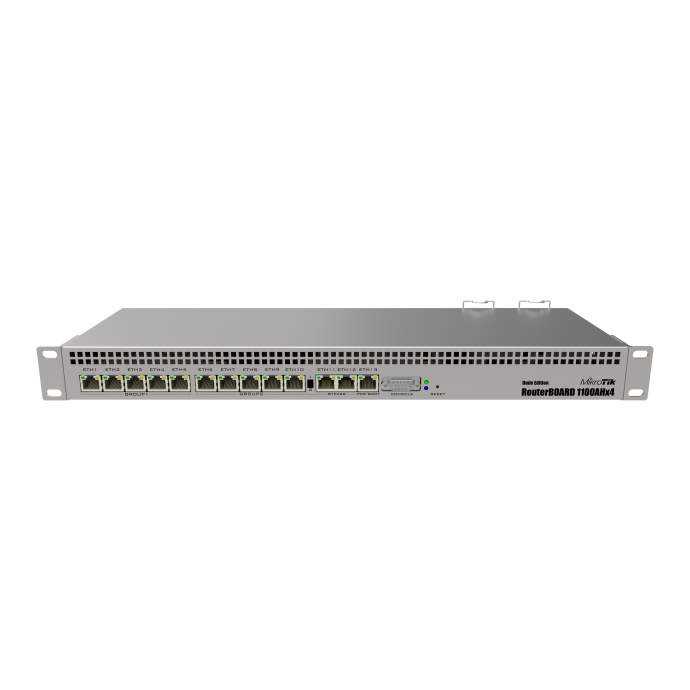

Mikrotik RB 1100DX4 13-port Gigabit router with PoE function

SKU

MIKAL21400

Brands: Mikrotik

Availability: On request

Delivery: 1 to 7 days

€594.36 Tax included

Mikrotik 13 Port Gigabit PoE Router

Mikrotik's AL21400 router has an Annapurna Alpine AL21400 CPU with four Cortex A15 cores at 1.4GHz each, for maximum performance of up to 7.5Gbps.

The device supports IPsec hardware acceleration and is faster than any other RouterBOARD device before (up to 2.2Gbps with AES128).

The unit comes with a 1U rack-mount box, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies. The RB1100AHx4 Dude edition introduces several high-speed storage connectors (two SATA and two M.2) to use a Dude database, proxy cache or any other intensive storage function.

Details

Miktotik's AL21400 router is a powerful 1U rackmount router with 13x Gigabit Ethernet ports.

What technical characteristics does the AL21400 router have?

Details
Product code	RB1100Dx4
Architecture	ARM 32bit
CPU	AL21400
CPU core count	4
CPU nominal frequency	1.4 GHz
Dimensions	444 x 148 x 47 mm
License level	6
Operating System	RouterOS
Size of RAM	1 GB
Storage size	128 MB
Storage type	NAND
Tested ambient temperature	-40°C to 70°C
Suggested price	$349.00

Powering

Details
PoE in	802.3af/at
PoE in input Voltage	20-57 V
Number of AC inputs	2
Number of DC inputs	2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage	-48, 20-57 V
Max power consumption	33 W
Max power consumption without attachments	25 W

Ethernet

Details
10/100/1000 Ethernet ports	13

Peripherals

Details
Extended storage	60GB M.2 SSD included
M.2 slots	2
Memory card type	microSD
Memory Cards	1
SATA ports	2x SATA3
Serial port	RS232

Other

Details
Current Monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes

More Information

More Information
EAN	8412140000017
System	Alámbrico
SERIE	Gibabit Ethernet
Color	Gray
Network Equipment	Switch
Ports	16
Data Speed	Gigabit (10/100/1000Mbps)
PoE	Yes
Product Brand	Mikrotik
