Reyee 16-Port 1GB Metal Switch

SKU
RG-ES116G-L
Brands: Reyee
Availability: Out of stock
1 to 7 days

Switch 16 Gigabit Ports Metallic Plug & Play RG-ES116G-L Reyee

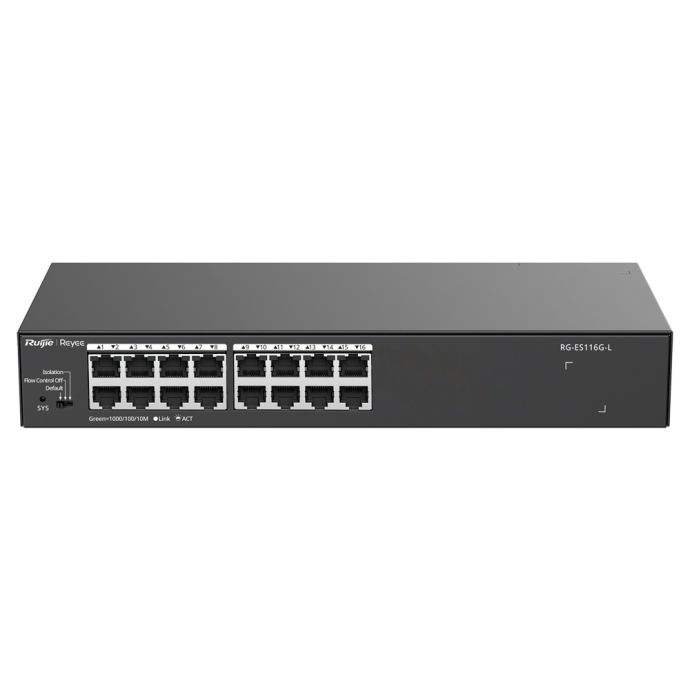

He Reyee RG-ES116G-L it's a 16-port Gigabit unmanaged switch with metal casing and design plug and play , designed for installers looking for a reliable and quick solution to deploy in offices, shops or small networks CCTV . No configuration required: just connect the equipment and the switch itself automatically negotiates the appropriate speed on each port.

Your design without fan guarantees operation silent , ideal for mounting on desktops, work rooms or racks near office positions. He flow control Integrated helps avoid packet losses when one of the devices becomes saturated, stabilizing traffic in networks with a lot of data movement (video recorders, PCs, NAS, etc.).

He port isolation allows traffic between certain ports to be segmented, very useful in installations video surveillance where you want to separate camera traffic from the rest of the network without the need for VLANs or manageable switches. In addition, it incorporates protection against surges of 4kV , which provides extra robustness against electrical spikes.

In short, a Metal Gigabit switch , compact, efficient and low consumption, perfect for projects where reliability, simplicity and good performance are needed without going into advanced configurations.

Reference: RG-ES116G-L

Technical specifications of the Reyee 16 Port Gigabit Metal Plug and Play Fanless Switch

Practical applications of the Reyee RG-ES116G-L 16 Gigabit Port Switch

Case Study 1: Simple Office Network with Future Growth

In a small or medium office that needs to connect multiple computers, network printers, IP phones or a NAS server, the RG-ES116G-L offers 16 ports Gigabit RJ45 with 32Gbps bandwidth , sufficient to support intensive data flows. The installer simply connects the patch cords and the switch takes care of the self-negotiation and of auto MDI/MDIX , avoiding cable type problems. The design without fan Helps maintain a quiet environment in work rooms or open racks.

Case study 2: Small CCTV system without complex management

In facilities of basic video surveillance Where cameras are powered by external PoE injectors or dedicated sources, this 16-port switch can concentrate all traffic to the main NVR or router. He port isolation allows the cameras not to exchange traffic between them, reducing broadcast risks and improving the stability of the system, while the flow control It acts as a “safety valve” when the recorder or network becomes saturated, reducing packet losses and pixelation in the image.



General specifications

Parameter Worth
Brand Reyee
Model RG-ES116G-L
Guy desktop switch not manageable
Housing Metallic
Design Without fan – silent operation



Interfaces and performance

Parameter Worth
Interface 16 × RJ45 ports
Speed ​​per port 10/100/1000 Mbps (autonegociable)
Switching bandwidth 32 Gbps
Packet forwarding rate 23.81 Mpps
MAC table 8K addresses



Management and functions

Parameter Worth
Management Not manageable; visible in Ruijie Cloud if there is at least one manageable switch in the installation
Supported technologies Auto-Negotiation, Auto MDI/MDIX, Flow control Port isolation



Protection, food and environment

Parameter Worth
Surge protection 4 kV
Feeding 100–240 VAC, 0,6 A
Maximum consumption 11 W
Operating temperature 0 ºC ~ 45 ºC
Dimensions 280 × 125 × 43,6 mm
Weight 1,86 kg



More Information
Hight 0.000
Length 0.000
Width 0.000
REDES - System NOT POE
REDES - SERIE 16 Ports
Color Black
Network Equipment Switch
Ports 16
Data Speed Gigabit (10/100/1000Mbps)
PoE No
Usar stock disponible No
Product Brand Reyee
