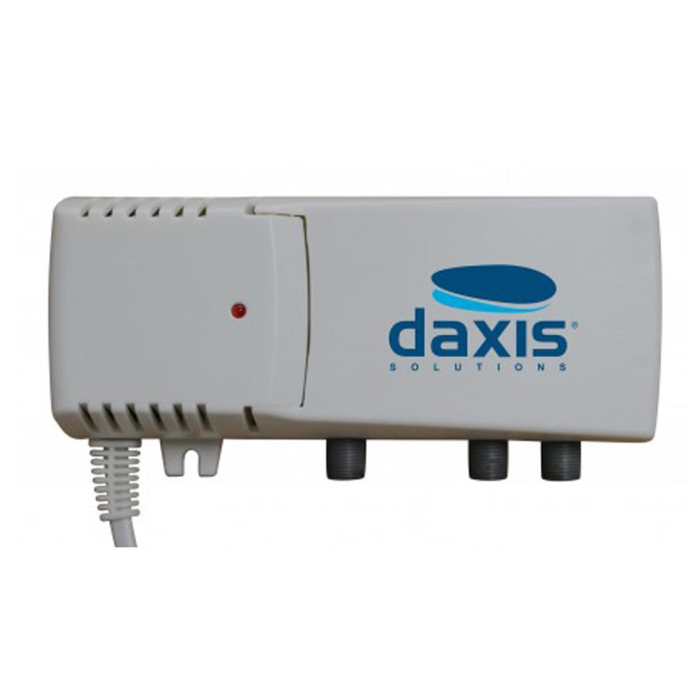

This DAXIS amplifier model ED0734 amplifies the terrestrial signal up to 20dB. The most important thing about this amplifier is that it allows the passage of the return channel.
As you know the return channel is the engargado of transporting the signal of internet when the service gives us a cable TV operator.
What technical characteristics does the amplifier ED0734 have?
- Inputs: 1
- Outputs: 2
- Frequency range: 87 - 782 MHz
- Gain: 20 dB
- Gain Regulation: 15 dB
- Maximum output level (DIN45004B - 60 dbc IM3): 102 dBμV
- Return losses: ≥ 15 dB
- Connectors: F
- Impedance. 75 Ohms
- Energy: ≈230V AC / 50Hz
- Current consumption: 3 W
- Operating temperature: -10 ° C to 50 ° C
- Interior use
What is the indoor amplifier used for?
If you have a poor signal and need more power, the indoor amplifier ED0734 will improve the power of the signal. This model is also compatible with the cable TV system, since it has a return channel.
|Type||Indoor home amplifier|
|Input signal||FM, UHF, VHF|
|Max. output level Ganancia (dB/uV)||102|
|Satellite signal supported||No|
