Amplifier FM Header (BII) low gain. SZB series.

SKU

IKU2293

Brands: Ikusi

Availability: In stock

Delivery: 24/48 Hours

€65.23 Tax included

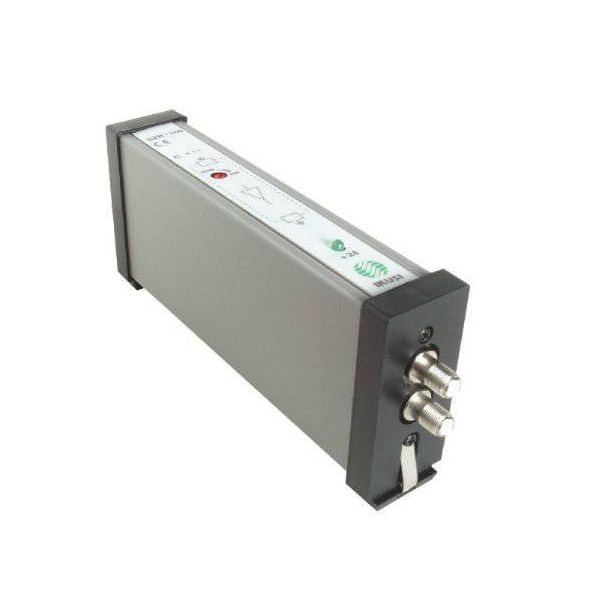

Header FM Amplifier (BII) low gain. SZB series. Ref: IKU2293 IKUSI.
This FM amplifier (BII) header low gain of Ikusi offers a frequency agility and a simplicity that gives us maximum flexibility and ease of expansion. They are designed for Amplifcacion of both analog and digital channels. We get a Z input demultiplexing and Z output multiplexing.

Details

Features:

Modules Amplification, Conversion and Modulation, dim. 190x38x87 mm.

F connectors

Toolless mounting on foundation-wall bracket.

TV single channel and multichannel amplifiers, the latter specially designed for the co-amplification of analog and digital channels. Z input demultiplexing and Z output multiplexing.

Adjacent channel amplification in UHF band.

Amplifiers FM and DAB radios.

PLL controlled converters.

Z input demultiplexing.

At one station each converter module must be complemented with an amplifier module output channel.

Programmable TV modulators Double Sideband.

Feeders from the AC mains, dimensions 215x35x140 mm.

+24 VDC output voltage automatically connected to the RF modules through contact bar incorporated in the base-support.

In a station it is appropriate to order SZB amplifiers in order of increasing channel.

The output is taken from the last one.

More Information

More Information
EAN	8435136422938
System	DTT
SERIE	SZB
Color	Gray
Type	Single channel amplifier
Entorno	Interior
# Inputs	2
Outputs	2
Gain	30
Max. output level Ganancia (dB/uV)	113
LTE compatible	No
Product Brand	Ikusi
