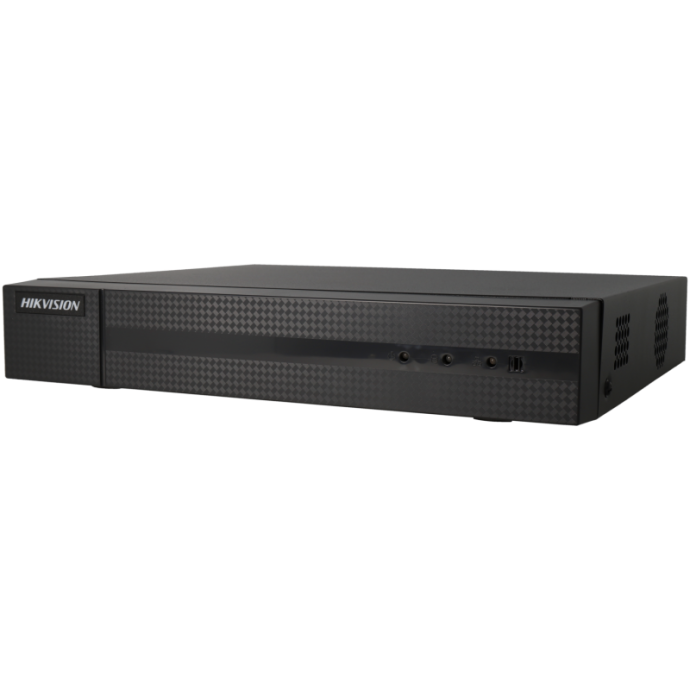

DVR Recorder 8 Channels Hybrid 4 Channels IP 4Mpx Detec. Movement Hikvision

SKU

HWD-6108MH-G4

Brands: Hikvision

Availability: On request

Delivery: 1 to 7 days

€130.44 Tax included

Hikvision 5-in-1 Hybrid Video Recorder with 16 Channels and 4Mpx

The Hikvision HWD-6108MH-G4 recorder, hybrid to connect your security cameras and have total control. We can connect any type of current camera since it is 5 in 1 (HDTVI/AHD/CVI/CVBS/IP).

Its 5 video inputs are compatible with any of the analog camera protocols as well as a hybrid configuration. Supports up to 4 IP channels in high resolution.

It uses H.265+ technology to reduce the space needed to store video by up to 80%. H.265+ is an algorithm that compresses the files recorded and stored on the recorder.

The video recorder has classification of human and vehicle targets, based on deep learning.

It has HDMI and VGA output ports. It has two-way audio, using one audio input and one audio output via RCA. Capacity for 1 3.5” SATA hard drive up to 10Tb (not included). It also has 2 USB 2.0 ports (for mouse and backup) and RJ45 10/100 (ethernet).

Package content:

*Hikvision 5 in 1 recorder

*Mouse

*Power cord

Details

Technical Specifications of the Hikvision 5-in-1 Hybrid Video Recorder with 8 Channels and 4Mpx

Video/Audio input
Video compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog video input	8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input	4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
AHD input	4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input	4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS input	Support
IP video input	2-ch (up to 10-ch) Enhanced IP mode on: 4-ch (up to 12-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Audio compression	G.711u
Audio input	1-ch, RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable
Video/Audio output
HDMI/VGA output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution	When 1080p Lite mode is not enabled: 4 MP Lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 4 MP Lite/1080p Lite/720p lite/VGA/WD1/4CIF/CIF
Main stream Frame rate	Main stream: When 1080p Lite mode is not enabled: For 4 MP stream access: 4 MP Lite@15 fps; 1080p Lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode is enabled: 4 MP Lite@15 fps; 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Sub-stream Frame Rate	WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video bit rate	32 Kbps to 6 Mbps
Audio output	1-ch, RCA (Linear, 1 KΩ)
Audio bit rate	64 Kbps
Dual stream	Support
Stream type	Video, Video & Audio
Synchronous playback	8-ch
Network management
Remote connections	64
Network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard disk
SATA Interface	1 SATA interfaces
Hard Disk Capacity	Up to 10 TB capacity for each disk
External interface
Two-way audio input	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Network interface	1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB interface	Real panel: 2 × USB 2.0
General
Power supply	12 VDC
Consumption (without HDD)	≤ 12W
Working temperature	-10 °C to +55 °C (+14 °F to +131 °F)
Working humidity	10% to 90%
Dimensions (W × D × H)	260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight (without HDD)	≤ 1 kg (without HDD, 2.2 lb.)
