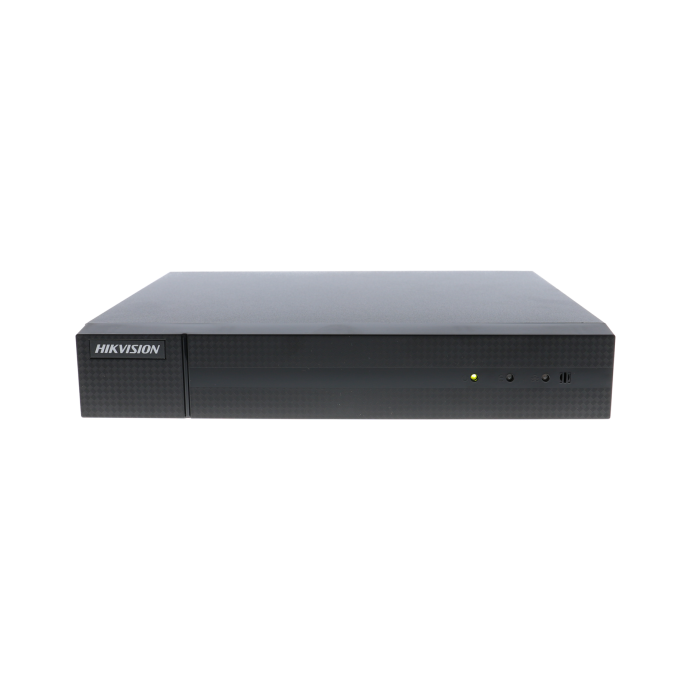

Hikvision 4 Channel POE 4Mpx NVR Recorder

SKU

HWN-2104MH

Brands: Hikvision

Availability: On request

Delivery: 1 to 7 days

€69.45 Tax included

4 Channel NVR Recorder HWN-2104MH

4-channel recorder for IP cameras with H.265+/H.265/H.264+/H.264 video compression with 60Mbps output bandwidth. It has a resolution of 4Mpx per channel.

It has a simultaneous HDMI and VGA video output. It has space to put a 3.5 SATA hard drive with a maximum capacity of 6TB (The hard drive is not included). All 4 ports are POE.

Using the Hik-Connect application we can easily have remote access to our recording system.

This recorder has an intelligent line crossing system, ideal for generating events from a certain area of the space to be monitored.

Details

Technical Specifications of the HWN-2104MH 4-Channel NVR Recorder

Brand	Hikvision
Inputs for IP cameras	LAN port up to 4 channels
Power over Ethernet	4 port PoE Switch IEEE802.3af/at (max. 50 W)
IP compatible cameras	HIKVISION, ONVIF
Bidirectional audio	1 input / 1 RCA output
Video outputs	1 HDMI Full HD, 1 VGA
Video compression format	H.265+ / H.265 / H.264+ / H.264
Display resolution	1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
Total bandwidth	40 Mbps downstream / 60 Mbps upstream
Main Stream recording	4MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Decoding capacity	1CH@4Mpx or 2CH@1080p
Simultaneous multifunction	Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms	No
Recording method	Manual, programmed, motion detection
External Backup	USB memory / HDD USB / CD-RW USB / DVR-RW USB
Internal memory	1 SATA HDD 3.5" of up to 6 TB (not included)
Communication	2 x USB 2.0 / 1 x RJ45 10/100/1000 (Ethernet)
Remote access	Web Browser, Smartphone App IVMS 4500 and PC Software IVMS 4200
Power	DC 48 V, 50/60 Hz
Dimensions / Weight	48 (H) x 315 (W) x 240 (D) mm / 1.0 Kg (without HDD)
