iLOFT VDS Phone

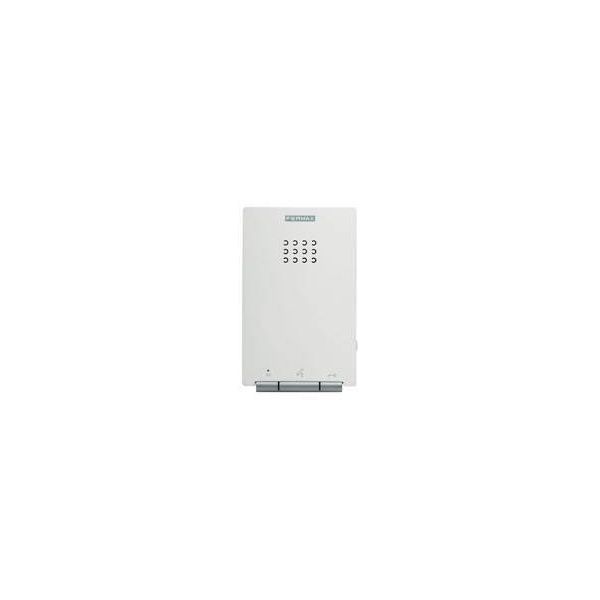

Fermax iLOFT VDS Phone
Electronic door phone only for replacement of Fermax phones with ADS-VDS technology. It is not a universal phone, nor is it valid for the substitution of other brands. Made of high-impact ABS plastic, it has ultraviolet protection for greater resistance to light. Easy installation. The housing terminals require a simple programming that is done from the street plate or from the phone itself. The installation can be done with the following type of cabling: CAT5 UTP / 3 wires.
Exclusive audio terminal for Fermax ADS-VDS phones.
What technical features does the iLoft VDS phone have?
- The handset incorporates a magnet to hold the handset to the body of the phone, which facilitates the hanging of the handset and prevents falls.
- Screwed on surface.
- System power: 18 Vdc
- Private communication.
- Sequential volume control.
- Door open button and call to the concierge.
- Total hands-free operation.
- 3 signaling LEDs:
- Blue: calling / in communication.
- Green: automatic opening function activated.
- Red: do not disturb function - off volume
- At rest: 5 mA.
- On call: 220 mA
- Active: 15 mA
- Weight: 0.1625 kg
- Operating temperature: 5, +40 ° C
- Dimensions: 146 (high) x 90 (wide) x 20 (deep) mm
What phones are supported?
The old and obsolete electronic door phones of Fermax can be replaced by this model 3390. This is the list of models and codes of obsolete telephones:
