Splitter DTT-SAT F 3D 7dB Tecatel

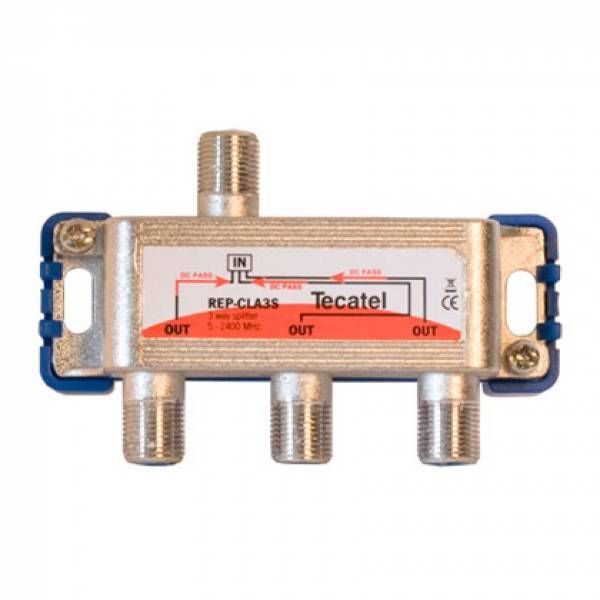

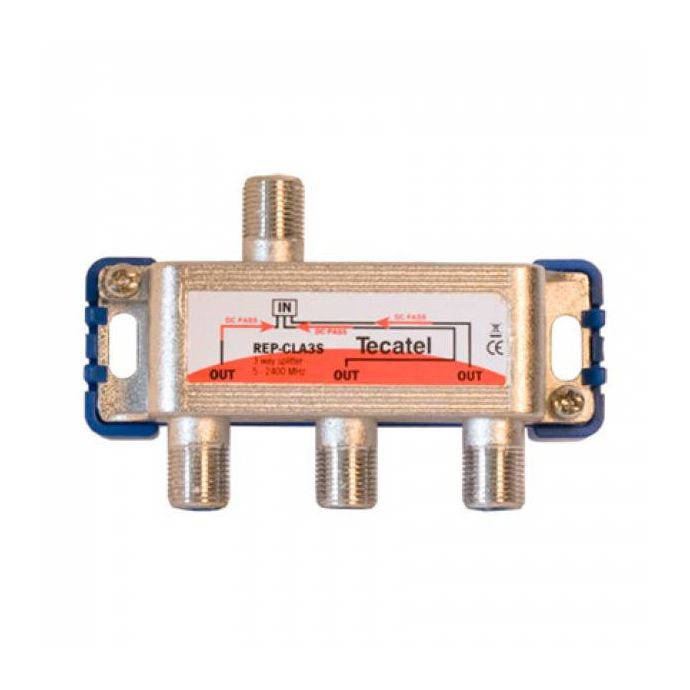

3-outlet distributor with F connector
The REP-CLA3S distributor is a distributor of 3 outputs of small size with connection F that allows to work in the frequency range of the 5 to the 2400 MHz.
This distributor has a good performance at high frequencies, with low attenuations and high shielding efficiencies.
It also has a high insulation between outputs with current flow between inputs and outputs of 24Vdc max.
The REP-CLA3S distributor has 3 outputs to distribute the signal from a coaxial cable through three different cables.
This distributor can be used in both a satellite and terrestrial installation, as it allows the passage of signal from both frequencies.
What technical characteristics does the REP-CLA3S dealer have?
- Insertion losses (dB) 5 - 40 MHz: 6.5.
- Insertion losses (dB) 40 - 1000 MHz: 6.7.
- Insertion losses (dB) 1000 - 2400 MHz: 9.4.
- Aislam. Between outputs (dB) 5-40 MHz:> 18.
- Aislam. Between outputs (dB) 40 - 1000 MHz:> 20.
- Aislam. Between outputs (dB) 1000 - 2400 MHz:> 20.
What is REP-CLA3S used for?
This distributor or distributor is used in installations in which we want to divide our signal to transmit it by three different cables for three shots of the installation.
|System||DTT & SAT|
|TV-SAT Distribution Equipment||Distributor|
|TV-SAT Distribution Connection||F|
|Input signal||DAB, FI, FM, UHF, VHF|
|Insertion Loss (dB)||7|
|Tecatel REPCLA3S Ficha Técnica||372.4 KB||Download|
