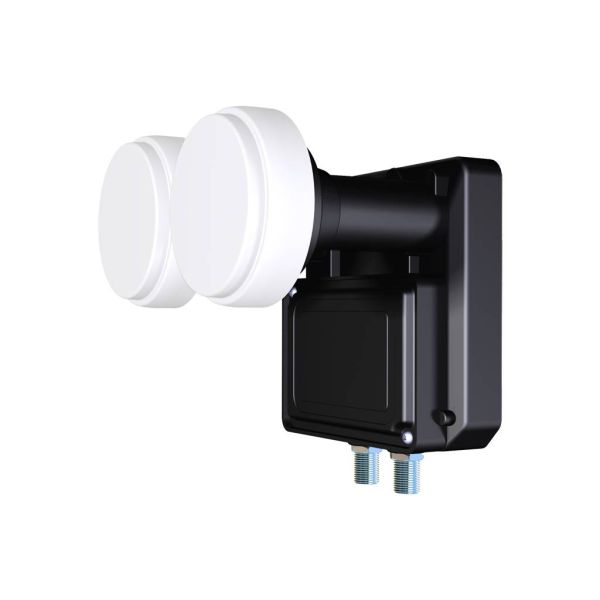

LNB Monoblock Twin 6º for Astra 19º and Hotbird 13º

SKU

ANTIV205070

Brands: Inverto

Availability: On request

Delivery: 1 to 7 days

€55.89 Tax included

LNB Monoblock 6º Black Pro 0.2dB converter

The Inverto Monoblock 6º Twin (2 outputs) LNB converter allows the reception of two satellites with an 80 cm antenna, generally used for the Astra 19º and Hotbird 13º satellites.

It allows the distribution of the signal to a maximum of two satellite receivers. The LNB includes 2 outputs, a cable is connected directly from each output to each receiver.

This LNB Monoblock Twin offers a gain of 50~65 dB and a low noise figure of 0.2dB.

Details

Inverto Monoblock Twin 6º LNB Converter with 23mm diameter for 80cm offset satellite dish.

What are the main features of Inverto Twin Monoblock 6th LNB?

Low noise level compatible with HDTV-DVBS2
Low noise figure of 0.2 dB
Low energy consumption
Very high performance Cross-Pole
Very high frequency stability
Gain: 50 ~ 65 dB

What technical specifications does the Inverto Twin Monoblock 6º LNB converter have?

Low Band Input Frequency Range	10.7 ~ 11.7 GHz
Low Band Output Frequency Range	950 ~ 1950 MHz
Low Band LO Frequency	9.75 GHz
High Band Input Frequency Range	11.7 ~ 12.75 GHz
High Band Output Frequency Range	1100 ~ 2150 MHz
High Band LO Frequency	10.6 GHz
Noise Figure	0.2 dB Typ. (0.7 dB Max.)
LO Initial Accuracy	+/- 1.0 MHz Max.
LO Temperature Drift	+/- 3.0 MHz Max.
Phase Noise (@ 10 kHz)	- 90 dBc / Hz Max.
Conversion Gain	50 ~ 65 dB
Gain Ripple (Over 26 MHz Bandwidth)	+/- 0.75 dB
Gain Variation (Over Full Band)	+/- 4 dB Max.
Image Rejection	40 dB Min.
1 dB Compression Point (@ Output)	0.0 dBm Min.
Control: Satellite A/B Selection	DiSEqC 1.0 (Sat A* = ASTRA 19.2° East, Sat B = ASTRA 23.5° East)
Cross Polarization Isolation	22 dB Min.
Output VSWR	2.5 : 1
In-Band Spurious	- 60 dBm Max.
Current Consumption	150 mA Max. @ 11 ~ 20 V
Operating Temperature	- 30 °C ~ + 60 °C
Output Impedance	75 Ω
Output Connector	F-Type (Female)
Weight	435 g
Recommended Dish Size	75-85 cm (F/D = 0.6)
Monoblock Mounting Bracket	23 mm
