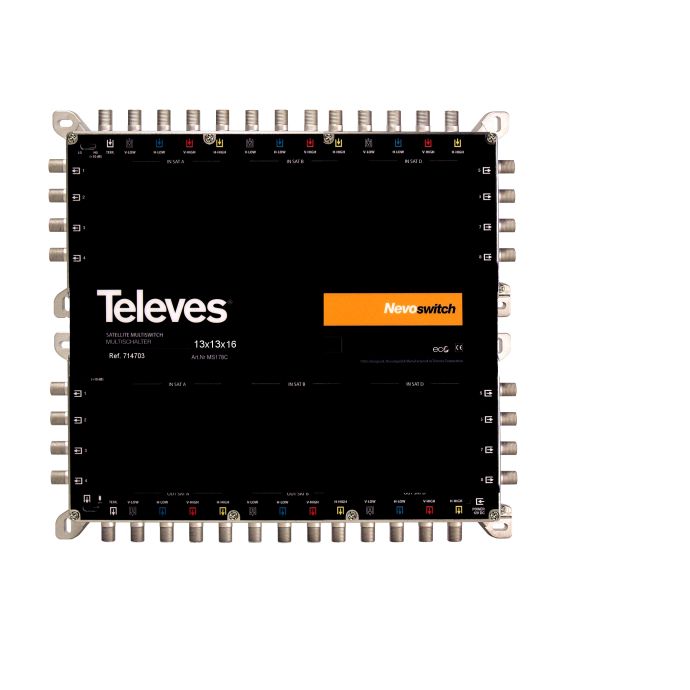

Nevoswitch 13 x 13 x 16 de planta "F" terminal / cascada
Nevoswitch 13 inputs x 13 outputs x 16 from floor "F" Terminal/Cascade
Each nevoswitch can be configured as a terminal or cascade via a switch. Its zamak chassis makes it immune to radiation. It has a low consumption mode (ECO) that adjusts the electrical consumption of the installation to the number of connected users.
easyF TELEVES black mini plastic box. For the installation of easyF mini dividers, indoors and outdoors.
New range of 13-input switchers. You have the following power options:
Through the Power DC jack (12V)
Through the SAT lines (12VDC)
The 12 Vdc power supply path is towards the SAT inputs/outputs, for powering the LNB or other chained elements (cascade).
In addition, each user outlet must be powered by applying between 12 and 18V through its connector (with a receiver).
This range incorporates the ECO system by which the consumption of the installation is reduced as the number of connected users decreases.
The power supply can be done autonomously through the satellite receiver, so no power supply is necessary, or with the power supply Ref. 732101 (Power Supply 12V-0.8A), which is sold separately.
Technical Characteristics of the Nevoswitch 13 x 13 x 16 "F" Terminal/Cascade. Ref. 714703 of Televes
Stands out for:
Zamak chassis that makes them immune to radiation.
Scalable system for star and cascade topologies. IF gain expandable +10dB for each group of 8 users.
Remote power supply through inputs and outputs.
Low consumption ECO mode.
Main features:
Compact design.
Configurable cascade/star.
Independent amplification of each line (8 satellite + 1 terrestrial).
Multiple power options (Jack, VL line, terrestrial input or output and user connectors)
Adjustable gain and equalization.
| Type | 13x13x16 | |||
| Frequency range | MHz | SAT | 950 ... 2200 / 2400 | |
| RF | 88 ... 862 | |||
| RP | 5 ... 65 | |||
| Input level | dBμV | SAT | 112 | |
| RF | 90 | |||
| Through losses | dB | SAT | 3.5 … 7.5 / 10 | |
| RF | 4 | |||
| RP | 6 | |||
| Tap losses. 1..8 /9..16 / 17..24 /25..32 |
dB | SAT (1) | 3/6/- /- | |
| RF | 4 / 6 / - / - | |||
| RP | 34 / 37 / - / - | |||
| Isolation | dB | H/V | >30 | |
| Users | >25 | |||
| DC pass | In-Out / Out-In | |||
| Max. total consump | mA | PSU | Low Gain(2) | 85 |
| High Gain(2) | 170 | |||
| Receiver | 40 | |||
| Temp. range | ºC | –5 ... +45 ºC | ||
| Protection level | IP | IP20 | ||
| EAN | 8424450173206 |
|---|---|
| System | Satellite |
| SERIE | Nevoswitch |
| Type | Cascading, Final |
| # Input satellites | 12 |
| # Terrestrial inputs | 1 |
| # Inputs | 13 |
| #User outputs | 16 |
| LNB type | Quattro |
| Product Brand | Televes |
