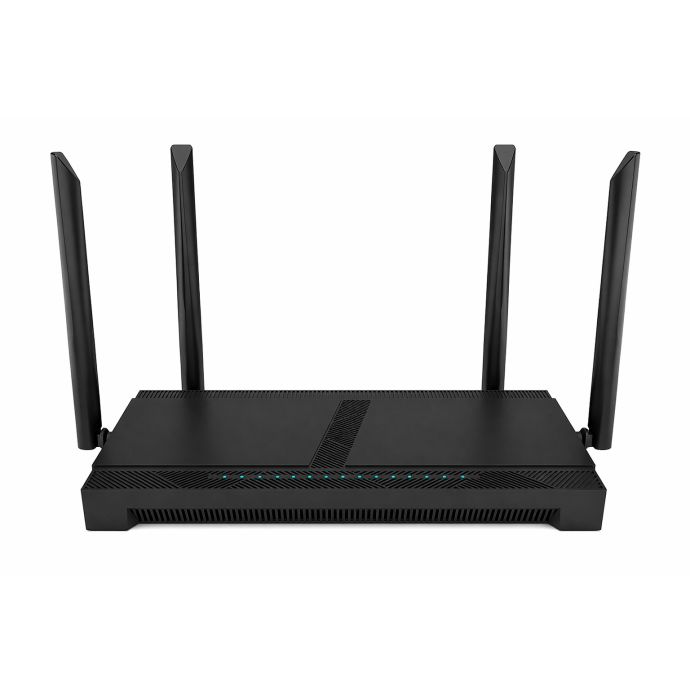

ONT GPON WiFi 6 AX1800 Router with 4x 1Gb Ports and 2 VoIP Ports by NuCom

SKU
NUCAX1GPV
Brands: NuCom
€61.60
Tax included
Availability: On request
1 to 7 days

NuCom AX1800 GPON WiFi 6 Router with VoIP and EasyMesh

The NuCom AX1800 Wireless Dual-Band Gigabit GPON Router with VoIP is a high-performance solution designed for FTTH networks, delivering fast, stable and efficient connectivity. It combines advanced WiFi 6 technology with GPON access to ensure optimal performance in demanding environments.

This router supports WiFi 6 (802.11ax) with dual-band speeds up to 1800 Mbps, improving network capacity and reducing latency. Thanks to OFDMA, it enhances efficiency by allowing multiple devices to transmit data simultaneously, making it ideal for high-density environments.

With integrated MU-MIMO technology, the router communicates with several devices at once without congestion, while EasyMesh support enables seamless expansion of wireless coverage. It is especially suitable for installers working on FTTH deployments where reliability, scalability and strong WiFi coverage are essential. Additionally, it includes VoIP functionality with 2 FXS ports, making it suitable for both new installations and equipment replacement.

In summary, the NuCom AX1GPV is a powerful and versatile GPON router that delivers excellent performance, wide coverage and efficient connectivity for modern fibre networks.

Reference: NUCAX1GPV

-
+

Extended information about NuCom AX1800 Wireless Dual-Band Gigabit GPON Router with VoIP

Practical applications of NuCom AX1800 Wireless Dual-Band Gigabit GPON Router with VoIP

Example 1. FTTH installation in homes with multiple connected devices:

In residential environments with smart TVs, smartphones, laptops, IoT devices and voice services, this GPON WiFi 6 router provides stable and efficient connectivity. OFDMA helps reduce latency by assigning channels to several devices at the same time, while MU-MIMO improves simultaneous wireless communication without reducing the user experience.

Example 2. Mesh wireless network in offices or small businesses:

For offices, shops or professional premises, EasyMesh support makes it easier to extend WiFi coverage without complex configuration. This allows installers to deploy a reliable and scalable wireless network, maintaining consistent connectivity across different rooms or work areas.

Package contents of the NuCom AX1800 Wireless Dual-Band Gigabit GPON Router with VoIP

  • NuCom AX1GPV router
  • Power supply
  • User manual
  • Basic connection cabling

Technical specifications NuCom AX1800 Wireless Dual-Band Gigabit GPON Router with VoIP

Feature Specification
Product type GPON WiFi 6 router with VoIP
WiFi standard 802.11a/b/g/n/ac/ax
WiFi speed Up to 1800 Mbps: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz
Wireless bands Dual band: 2.4 GHz and 5 GHz
Wireless technologies OFDMA, MU-MIMO, Beamforming, BSS Coloring, Band Steering
Modulation 1024-QAM
Channel bandwidth 20 / 40 / 80 MHz
Mesh support EasyMesh compatible
LAN ports 4x Gigabit Ethernet RJ45
GPON port 1x SC/APC GPON port
VoIP ports 2x FXS RJ11 ports
USB 1x USB 3.0
Antennas 4x fixed external 5 dBi antennas
Power supply DC 12V / 2A
GPON standard ITU-T G.984
GPON distance Up to 20 km
Downstream 2.5 Gbps
Upstream 1.25 Gbps
Optical wavelength US 1310 nm / DS 1490 nm
GPON optical power RX: -8 to -28 dBm / TX: 0.5 to 5 dBm
Protocols IPv4 / IPv6 Dual Stack
VLAN 802.1Q tag VLAN, transparent VLAN, VLAN translation, VLAN trunk
WAN type Dynamic IP, Static IP, PPPoE
WAN mode IPoE, Bridge, 6rd, 6in4, 6to4
Network functions NAT/NAPT, ALG, DDNS, DNS Server/Client, static/default routes
QoS 802.1p Priority, WMM, bandwidth control
DHCP DHCP Server, DHCP Client, client list, address reservation
Port forwarding Virtual Server, Port Triggering, UPnP, DMZ
Wireless security WEP, WPA2/WPA3, WPA-PSK2/3 encryption
Firewall security DoS, SPI Firewall, IP/MAC address filter, domain filter, IP and MAC binding
VoIP features Call forwarding, call waiting, call block, 3-way conference call
POTS codecs G.711A/μ, G.729a/b, G.722
Fax support T.30 / T.38 / G.711 fax mode
Remote management TR-069, OMCI, WebUI, HTTP, HTTPS, Telnet, SSH, FTP, Ping
Dimensions 232 x 124 x 31 mm
Operating temperature 0°C to 40°C
Operating humidity 10% to 90%, non-condensing
Storage temperature -40°C to 70°C
Storage humidity 5% to 95%, non-condensing
Certifications CE, RoHS
