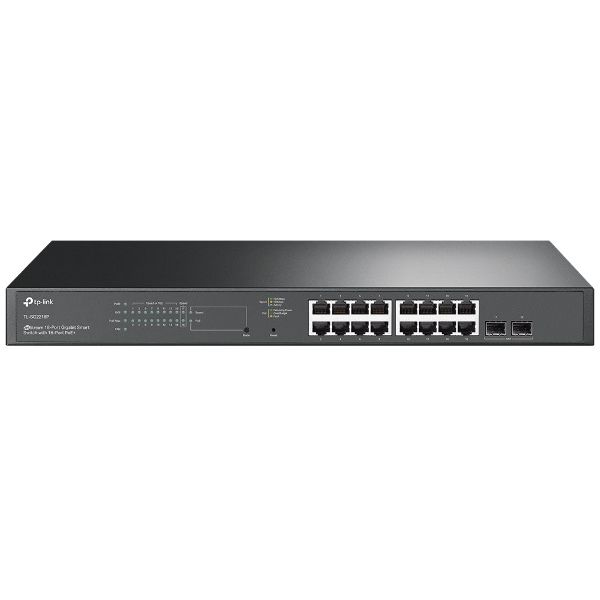

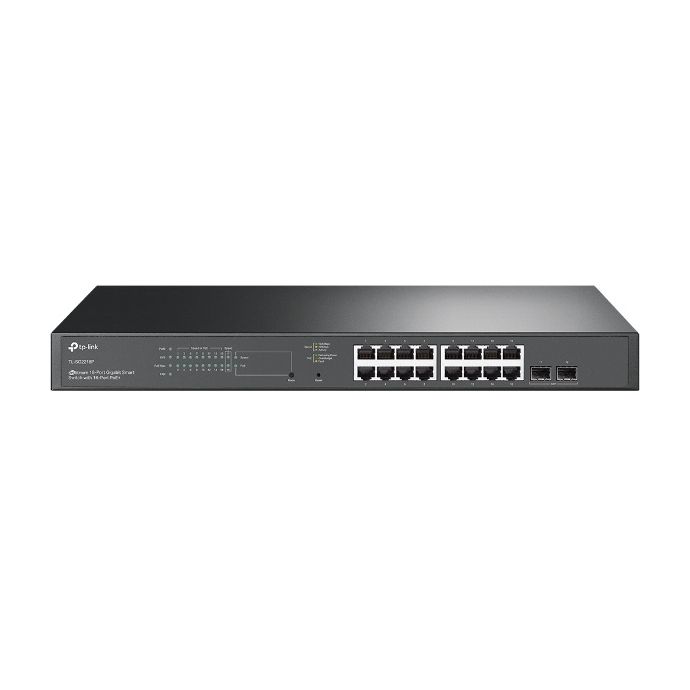

Manageable Switch 16 Ports 1Gb POE+ and 2 SFP Gb 150W Omada by Tp-Link

SKU

TL-SG2218P

Brands: Tplink

Availability: On request

Delivery: 1 to 7 days

€314.53 Tax included

Manageable Switch with 16 Ports 1GB POE+ and 2 SFP GB 150w Omada by Tp-Link

Introducing the TL-SG2218P switch with 16 Gigabit POE+ Ethernet ports and 2 SFP slots, designed for businesses that need advanced switching and network management functions, providing high-speed connectivity to multiple devices simultaneously.

It is characteristic for: having centralized management in the cloud with integration with the Omada SDN platform, advanced L2+ functions, investment protection in the LAN area and total power in the POE+ ports of up to 150W.

The fact that the network control is managed centrally in the cloud through Omada gives rise to a very scalable network, being able to control everything through a single interface. All types of devices (switches, access points or gateways) are integrated. These types of switches are widely used in the hospitality sector, education, offices, and businesses that need perfectly integrated wireless and wired connections (the Omada Controller software is required previously installed on a PC or on an oc200 or oc300 controller).

This unified management provides us with greater performance, security and reliability.

Details

Technical Specifications of the Managed Switch with 16 Ports 1GB POE+ and 2 SFP GB 150w Omada from Tp-Link

TP-Link TL-SG2218P Specifications:
Administration Features
Switch layer: L2/L2+
Quality of service (QoS) support: Yes
Web-based management: Yes
Managed through the cloud: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes
MIB, support: MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925) , Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9)
Ports and Interfaces
Number of basic RJ-45 Ethernet switching ports: 16
Basic RJ-45 Ethernet Switching Type Ports: Gigabit Ethernet (10/100/1000)
Connection
Network standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3 x, IEEE 802.3z
Support 10G: No
IP routing: Yes
Policy-based routing: Yes
Flow control support: Yes
Adding links: Yes
Storm transmission control: Yes
Limit rate: Yes
Auto MDI / MDI-X: Yes
Spanning Tree Protocol: Yes
Ethernet LAN, data transfer speed: 10,100,1000 Mbit/s
Auto-negotiation: Yes
VLAN Support: Yes
Data transmission
Switching capacity: 26.78 Gbit/s
Forwarding rate: 26.78 Mpps
MAC address table: 8000 entries
Jumbo Frames, support: Yes
Jumbo Frames: 9
Security
DHCP features: DHCP client, DHCP relay, DHCP snooping
Access Control List (ACL): Yes
MAC address filter: Yes
Static port security: Yes
SSH/SSL Support: Yes
Loop protection: Yes
BPDU protection and filtering: Yes
Authentication: MAC-based authentication, Port-based authentication
Multicast functions
Multicast support: Yes
Multicast Features: Multicast Sending
Design
Rack mounting: Yes
Form factor: 1U
Product color: Black
LED Indicators: Yes
Certification: CE, FCC, RoHS
Power control
Power source: DC/PoE
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) Budget: 150 W
Environmental conditions
Operating temperature range: 0 - 50°C
Storage temperature range: -40 - 70 °C
Relative humidity range for operation: 10 - 90%
Relative humidity range during storage: 5 - 90%
Weight and measurements
Width: 440mm
Depth: 180mm
Height: 44mm
Packaging
Cables included: LAN (RJ-45)
User Manual: Yes
Packaging type: Box
