Photodetector with Image Request Certificate 2 Black

SKU
AJ-MOTIONCAM-PHOD-B
Brands: AJAX
Availability: In stock
24/48 Hours
€121.81 Tax included
AJAX

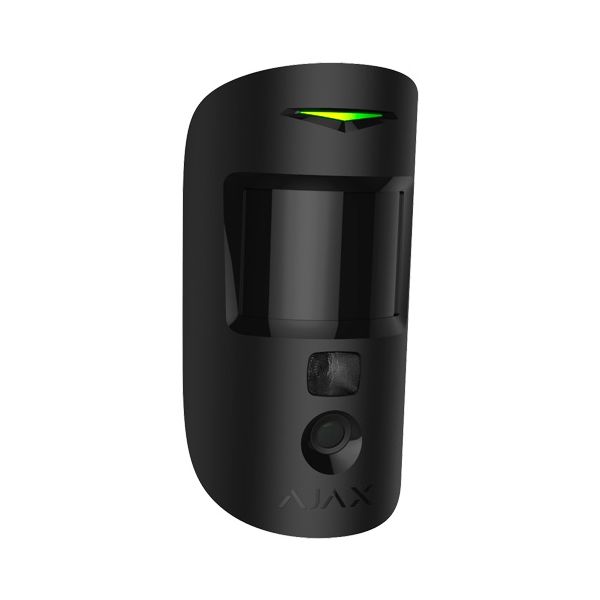

Motion photo detector with image request Ajax MOTIONCAM-PHOD-W

This device is one of the components of the Ajax protection system and it is a motion detector, equipped with a camera that will send photos when an alarm is activated. It is a volumetric PIR that has a PIR lens capable of detecting 24 zones and 6 different planes.

You can add this detector to your Ajax professional alarm system, with a Grade 2 certificate. This PIR has a camera that will send a maximum of up to 5 images per detection to your mobile or associated device in the event of an alert or request.

With a detection field of up to 12 meters, installation 2.4 meters from the ground is recommended for optimal detection. The detector is equipped with an anti-pet system, capable of detecting your animal without triggering any alert (for pets under 20kg), in these cases, the sensitivity level will be adjusted (low, medium or high).

The photodetector incorporates an infrared sensor for night mode and LED indicators that indicate the status of the device.

This detector is compatible with the HUB 2 and HUB 2 Plus. It works with 2 CR123A 3V batteries, which can last up to 4 years.

The device is prepared for placement indoors, is made of Black ABS plastic and includes a stand.

Compatible with Hub 2/Hub 2 Plus/Hub Hybrid/ReX2.

Technical Specifications of the motion photo detector with image request Ajax MOTIONCAM-PHOD-B



Marca Ajax
Tecnología PIR volumétrico con cámara
Grado de seguridad Grado 2
Lente PIR 24 zonas y 6 planos
Campo de detección 12 m / H: 88.5º / V: 80º / Instalación 2.4 m
Frecuencia 868 MHz Jeweller y Wings (envío de imágenes)
Distancia de transmisión ≤ 1700 m en espacio abierto
Inmunidad mascotas ≤ 20 kg, ≤ 50 cm
Anti-enmascaramiento No dispone
Sensibilidad Ajustable. 3 niveles (bajo, medio y alto)
Gestión de privacidad Gestión del cliente final sobre los permisos de solicitud de imagen
Resolución imágenes Hasta VGA (640 x 480)
Número de imágenes Hasta 5 imágenes por cada detección
Envío de imágenes Envío y recepción de imágenes en menos de un minuto
Iluminación infrarroja IR para modo nocturno
Indicación LEDs Alarma, tamper, señal
Batería 2 pilas CR123A 3.0 V (duración hasta 4 años)
Compatibilidad Hub 2 y Hub 2 Plus
Temp. funcionamiento 0º C ~ 40º C
Material de la cubierta Plástico ABS
Dimensiones (sin soporte) 135 (Al) x 70 (An) x 60 (Fo) mm
More Information
SystemJeweller
SERIEPIRCAM
ColorBlack
AutomationPIR Presence Sensor
Product BrandAJAX
