White Volumetric PIR Detector with Camera

SKU

AJ-MOTIONCAM-B

Brands: AJAX

Availability: On request

Delivery: 1 to 7 days

€157.54 Tax included

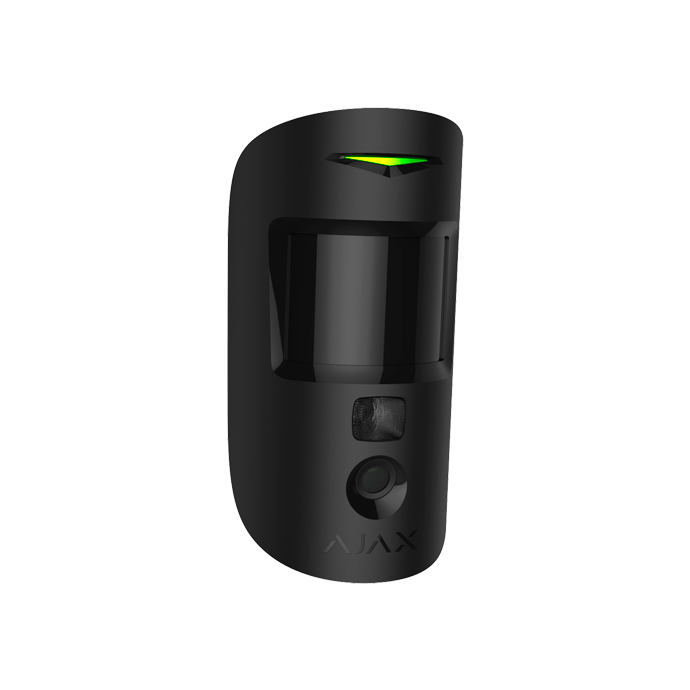

AJAX AJ-MOTIONCAM-B Volumetric PIR Detector with Camera

Wireless 868 MHz Jeweler PIR photodetector for AJAX systems, with 12m detection range, 88.5º horizontal and 80º vertical field of view. The sensitivity is adjustable in 3 levels (low, medium and high) and it is immune to pets (≤ 50cm).

It has a camera that sends up to 5 images per detection at VGA resolution (640 x 480).

Designed for indoor installation, includes support for mounting. It is powered by 2 CR123A 3.0 V batteries, enough for a duration of 4 years.

Black color.

Compatible with Hub 2/Hub 2 Plus.

Details

Volumetric PIR Pet Immune Photo Detector, with Camera, 868 MHz Jeweler Wireless Connection

What are the main features of the AJAX AJ-MOTIONCAM-B PIR Detector?

Volumetric pet immune PIR photodetector
Grade 2 approved
Bidirectional
868MHz Jeweller Wireless
Internal antenna range open space 1700 m
Movement detection indicator
Detection: Range 12m / H: 88.5º / V: 80º
Tamper-resistant opening
Pet Proof ≤ 20Kg
Maximum resolution VGA
Sending up to 5 images for each detection
Power supply 2 batteries CR123A 3.0 V (estimated duration 4 years)
Interior use
Includes mounting bracket
Compatible with Ajax Hub 2
Black colour

What technical specifications does the AJAX AJ-MOTIONCAM-B PIR Detector have?

Brand	Ajax
Technology	Volumetric PIR with photo camera
Security grade	Grade 2
PIR lens	24 zones and 6 planes
Detection range	12 m / H: 88.5º / V: 80º / Installation 2.4 m
Frequency	868 MHz Jeweller and Wings (sending images)
Transmission distance	≤ 1700 m in open space
Pet immunity	≤ 20 kg, ≤ 50 cm
Masking	No
Sensitivity	Adjustable. 3 levels (low, medium and high)
Image resolution	Up to VGA (640 x 480)
Number of images	Up to 5 images per detection
Sending images	Sending and receiving images in less than a minute
Infrared lighting	IR for night mode
LEDs indication	Alarm, tamper, signal
Battery	2 CR123A3.0 v-batteries (life up to 4 years)
Compatibility	AJ-HUB2-W/B
Temp. operation	0º C ~ 40º C
Housing material	ABS plastic
Dimensions (without bracket)	135 (H) x 70 (W) x 60 (D) mm
