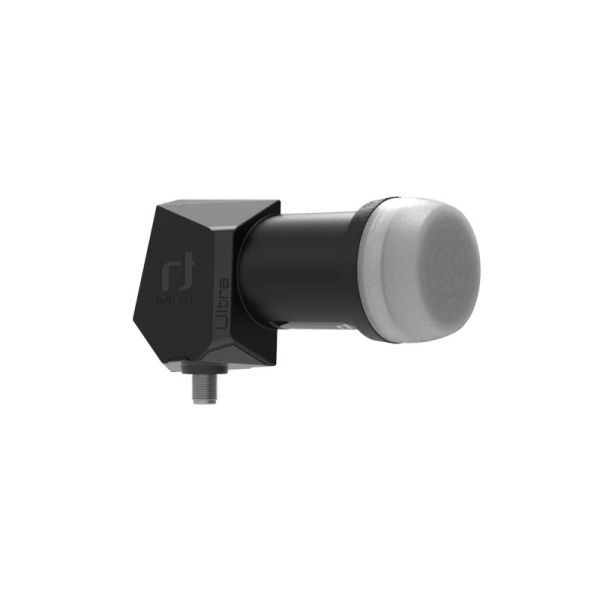

Single Black Ultra high-end LNB converter 0.2 dB by Inverto.
Single Black Ultra LNB converter 0.2 dB. Ref: IDLB-SING40 ULTROPP of Inverto.
This LNB is a high-end product, with high performance with the lowest noise figure for satellite reception. Thanks to its innovative front-end architecture and high-quality components, this LNB has even greater gain with lower noise figure and phase noise, which makes it one of the LNBs with the best performance reliability and quality in the market.
This LNB provides a jump in overall reception performance compared to standard LNBs. Designed to meet stringent specifications and manufactured to the highest quality standards in the industry, this LNB is an ideal solution for the reception of satellite transmissions throughout Europe.
Main features
- Superior Phase Noise performance, DVB-S2 (HDTV) compliant
- Excellent Cross Polarization Isolation
- Very Low Spurious Levels
- Superior Noise Figure
- Higher Conversion Gain
- Ultimate Reliability
Technical specifications
| Low band input frequency range | 10.7 GHz ~ 11.7 GHz |
| Low band output frequency range | 950 MHz ~ 1950 MHz |
| Low band LO frequency | 9.75 GHz |
| High band input frequency range | 11.7 GHz ~ 12.75 GHz |
| High band output frequency range | 1100 ~ 2150 MHz |
| High band LO frequency | 10.6 GHz |
| Noise figure | 0.2 dB typ. (0.7 dB Max.) |
| LO temperature drift | ± 3.0 MHz max. |
| LO initial accuracy @ 25 °C |
± 1.0 MHz max. |
| LO phase noise @ 10 kHz | -90 dBc/Hz |
| Conversion gain | 60 dB min. |
| Gain ripple (over 26 MHz bandwidth) | ± 0.75 dB |
| Gain variation (over full band) | ± 4 dB max. |
| Image rejection | 40 dB min. |
| 1 dB compression point (@ output) | 0.0 dBm min. |
| Cross talk | 22 dB min. |
| Control signal Ca (V) | 11.0 V ~ 14.0 V |
| Control signal Cb (H) | 16.0 V ~ 20.0 V |
| Control signal Cc (band switching) | 22 kHz ± 4 kHz, 0.4V – 0.8V pp |
| Output VSWR | 2.0 : 1 |
| In band spurious level | -50 dBm max. |
| Current consumption | 120 mA max. (11 VDC ~ 20 VDC) |
| Operating temperature | -30 °C ~ +60 °C |
| Output impedance | 75 Ω (F-type) |
| Output connector type | F-Type (female) |
| Weight | 151 g |
| Logistical info | |
|---|---|
| Packaging dimensions (W x D x H) | 13.2 cm x 7.1 cm x 6.7 cm |
| Packaging weight | 0.22 Kg |
| Quantity per Carton | 60 |
| Carton dimensions (W x D x H) | 41.9 cm x 33.2 cm x 35.5 cm |
| Carton weight | 13.01 kg |
| Quantity per pallet | 720 |
What is an LNB?
An LNB - Low Noise Block (also called an LNC- Low Noise Converter), it is used for communications (broadcast) satellite reception. The LNB is usually affixed either in or on the satellite dish and its purpose is to collect and amplify the satellite signal received from the dish and then down convert the signal to lower more manageable IF frequency which can then be carried over standard coaxial cabling to the receiver.
| EAN | 5453002615133 |
|---|---|
| System | Satellite |
| SERIE | Single |
| Color | Black |
| LNB type | Universal |
| Output number | 1 (Single) |
| Noise level | 0,2 |
| Focus number | One focus |
| Gain | >60 db |
| Product Brand | Inverto |
