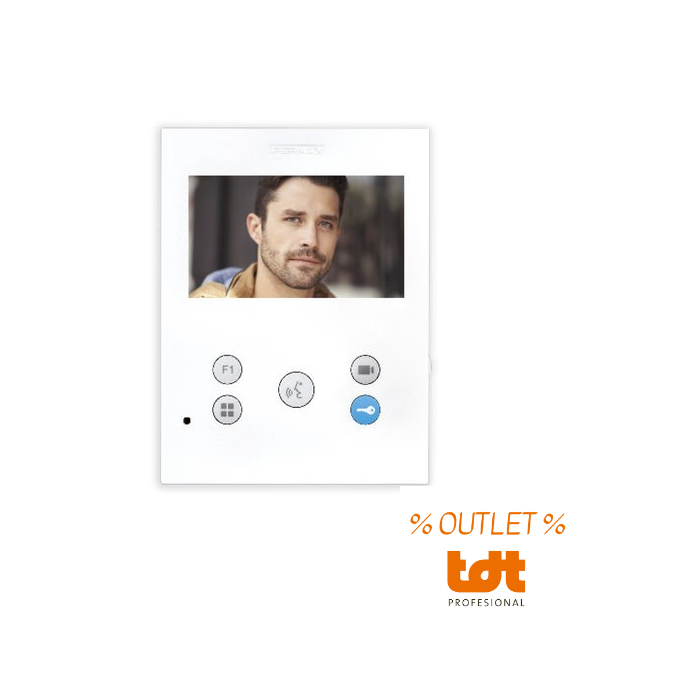

VEO-XS 4.0 DUOX Color 4.3" Monitor Fermax OUTLET

SKU

FER9448OUT

Brands: Fermax

Availability: Out of stock

Delivery: Consult

€100.25 Tax included

OUTLET: VEO-XS 4.0 DUOX Color 4.3" Monitor Fermax 9448

VEO-XS monitor with 4.3" Color screen for Fermax DUOX video door entry systems. Monitor with Hands-free communication and extra-flat, compact and discreet design. With a textured finish to facilitate cleaning and ultraviolet protection against sunlight.

DUOX technology stands out for its easy connection using 2 non-polarized wires. Its OSD menu and the position of the buttons makes its configuration simple and intuitive for the user.

This monitor does not include the 9447 connector, required for installation.

What is TDTprofesional OUTLET?

Our Outlet category is made up of products from our clients' returns, which are in perfect condition and have been tested by our technical department to guarantee their correct operation. The product packaging may show knocks or the product may not be sent in its original packaging. The products in our Outlet include a special discount and have the same guarantee as new products.

Details

OUTLET: VEO-XS DUOX Monitor with Hands Free and 4.3" Color Screen

What technical specifications does the Fermax 9448 Monitor have?

GENERAL CHARACTERISTICS 9448

Technology: DUOX (full digital 2-wire non-polarized)
Audio / Video System: Audio / Video Color
Mounting: Surface (request separate connector ref. 9447)
Desktop support: Yes (ref. 9420)
Hands-free communication: Yes
Optional press-to-talk communication: Yes
Inductive loop version: Yes (monitor ref. 9458)
Screen dimensions: 4.3 ”(Panoramic 16: 9)
Screen resolution (H x V): 480 x 272
Product Color: Matte White
Total buttons: 5 Type of mechanical buttons (silicone)
Number of LEDs for light signals: 3 (red, blue, green with various states)

PROGRAMMING THE TERMINAL ADDRESS

From the terminal: From the OSD menu
From the license plate or concierge: Yes
From the plate through the doorbell (without entering the house): Yes

FUNCTIONS

Automatic photo capture (PHOTOCALLER): Yes (1 photo / call, up to 150 photos, 320 x 240 pixels). This function can be enabled by the user. Disabled by default
Call to the concierge center: Yes (from the door open button)
Self-ignition: Yes (up to 3 plates / cameras)
On-screen OSD menu: Yes
Button for additional function F1: Yes (sending negative and / or command)
Additional function F2 from screen: Yes (command only, not negative)
Door bell with differentiated plate melody: Yes
Connection for devices add. (ext. of calls, act. of lights and bells, etc.): Yes (ref. 2040, ref. 2438, ref. 3257)
Additional terminals with the same address: Yes, maximum 2 additional terminals (an additional power supply may be required)
Doormatic (opening function for professionals): Yes (configurable up to 12 h). Green led activated.

SETTINGS

Date and time: Yes (manually and automatically from the internet via wifi)
Melody Selection: Yes (5)
Call volume regulation: Yes (10 levels per OSD menu and slider)
Do not disturb function: Yes (via OSD menu) + Red led signaling
Conversation Audio Volume Regulation: Yes (10 levels per OSD menu and slider)
Brightness, contrast and color regulation: Yes (via OSD menu)

TECHNICAL CHARACTERISTICS

Product dimensions (Width x Height x Depth mm): 125 x 165 x 21
Time to answer or open since the call occurs: 30 s.
Talk time: 90 s.
Conversation privacy: Yes
Supply voltage: 18 Vdc
Maximum consumption (W): 6.5W (14.4W the ref. 9458 if inductive loop activated)
Standby power consumption (W): 0.8 W
Operating temperature (ºC); Humidity: [-5ºC, + 40ºC]; [0%, 90%]
Line adapter included in the monitor: Yes (A, C, default position OFF) Terminals Bin, Bin, Bout, Bout, -, A +, F1, T
