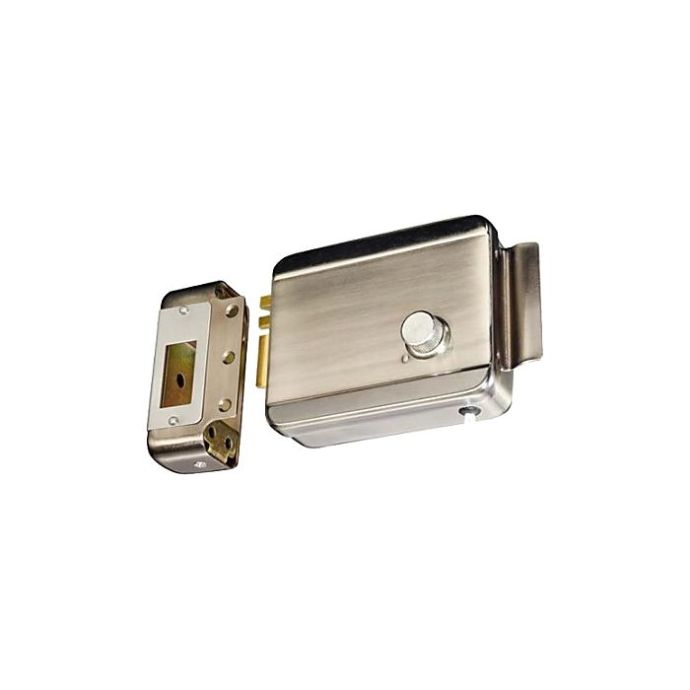

An access control integrator installs the AV-ABK702AR lock on a right-hand opening door operated by a card reader. The power supply is managed through the fire alarm system relay so that the Fail Safe mechanism releases the exit in the event of an alarm or power failure. The magnetic sensor monitors the actual door position and restores locking one second after the door closes.
When upgrading an existing wooden or metal door, the installer needs to add remote opening from a video door entry system without recessing an electric strike into the frame. The surface-mounted design reduces the amount of carpentry work, while the timer prevents the entrance from remaining unlocked if an opening command is sent but nobody enters. If the door is opened, the magnetic sensor restores locking shortly after it closes.
| Brand | OEM |
|---|---|
| Reference | AV-ABK702AR |
| Product type | Electromechanical security lock or complete electric door opener |
| Mounting | Surface mounted |
| Opening direction | Right-hand opening |
| Operating mode | NC Fail Safe |
| Status without power | Unlocked |
| Power supply | 12 VDC |
| Specified current | 1.5-3 A |
| Relocking time if the door is not opened | 9 seconds |
| Relocking time after opening | 1 second after the closed door is detected |
| Door status sensor | Magnetic sensor integrated into the strike plate |
| Status indication | Status LED and door status output |
| Bolt length | 20 mm |
| Bolt material | Steel |
| Lock dimensions | 102 × 126 × 34.5 mm, width × height × depth |
| Weight | 1.45 kg |
| Operating temperature | −40 °C to +50 °C |
| Mechanical protection | Protection against tampering with the latch |
| Suitable doors | Wooden, metal or glass doors with suitable surface-mounting fixings |
| Recommended application | Access control and escape routes requiring release following a power failure |
| EAN | 8435325441580 |
|---|---|
| Hight | 0.080 |
| Length | 0.180 |
| Width | 0.100 |
| ACCESOS - SISTEMA | Single Voltaje |
| ACCESOS - SERIE | Abrepuertas |
| Color | Silver |
| Multivoltage 10 to 24 Vc/Va | No |
| Product Brand | OEM |
