Fermax 250kg Surface Electromagnetic Door Opener

SKU
FER30505
Brands: Fermax
€126.71
Tax included
Availability: In stock
5 days

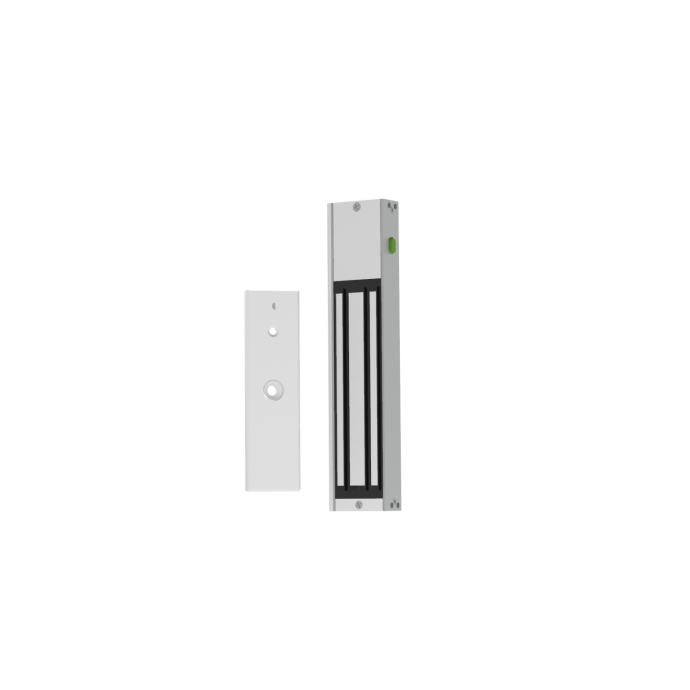

Fermax 30505 280 kg Surface-Mounted Electromagnetic Lock

The Fermax 30505 surface-mounted electromagnetic lock provides a holding force of 280 kgf, ensuring secure closure for doors in offices, commercial premises, residential buildings and professional facilities. It is especially suitable for access-control and door-entry installations.

It operates automatically at 12 or 24 V DC, consuming 400 mA at 12 V and 200 mA at 24 V. Its fail-safe operation keeps the door locked while power is supplied and releases it when power is interrupted, an essential consideration in access points requiring automatic release during a power failure.

Surface mounting avoids recessing the mechanism and simplifies adaptation to existing doors. It incorporates a CTC microswitch and LED status indicator to monitor whether the door is open or closed. Depending on the door configuration, it can be combined with the Fermax 30506 L-3 bracket or the Fermax 30507 double Z bracket.

The Fermax 30505 is a complete unit intended for new installations, refurbishment projects and electromagnetic locking upgrades, rather than an internal replacement part. It requires a suitable DC power supply, such as the Fermax 4813 12 V DC 2 A power supply, together with the appropriate mounting accessories for the door geometry.

Reference: FER30505

-
+

Extended information about the Fermax 30505 280 kg surface-mounted electromagnetic lock

Practical applications of the Fermax 30505 electromagnetic lock

Example 1: Access control at an office entrance

An access-control installer can fit the Fermax 30505 to the main entrance of an office managed by a proximity reader, keypad or door controller. The electromagnet keeps the door secured during normal operation, while the integrated monitoring contact and status LED help technicians check the condition of the door during commissioning and maintenance.

Example 2: Upgrading the entrance door of a residential building

When refurbishing a communal entrance where recessing an electric strike into the frame is impractical, the surface-mounted design allows an electromagnetic locking system to be installed with less modification to the existing door. The installer can select the appropriate Fermax mounting bracket for the door geometry while providing a holding force of up to 280 kgf.

Package contents of the Fermax 30505 electromagnetic lock

  • 1 Fermax 30505 surface-mounted electromagnetic lock body.
  • 1 armature plate for installation on the door leaf.
  • Special mounting brackets, glass-door bracket, power supply and access-control equipment are not included.

Technical specifications Fermax 30505 electromagnetic lock

Specification Value
Brand Fermax
TDTprofesional SKU FER30505
Manufacturer reference 30505 / F30505
EAN 8424299305059
Product type Surface-mounted electromagnetic lock
System Access control and electromagnetic door locking
Holding force 600 lb / 280 kgf
Operating principle Fail-safe: locked while powered and released when power is removed
Power supply 12–24 V DC with automatic voltage detection
Current consumption 400 mA at 12 V DC / 200 mA at 24 V DC
Door monitoring Integrated magnetic contact / CTC microswitch
Status indicator LED
Integrated time delay No
Installation Surface mounting
Electromagnet dimensions 250 × 50 × 27 mm
Armature plate dimensions 180 × 38 × 13 mm
Operating temperature −60 to +50 °C
Packaged product weight 2.13 kg
Package dimensions (H × W × D) 6.1 × 27 × 6.3 cm
Fermax technology classification Generic
Recommended application New installations, refurbishment projects and upgrades to existing access points



More Information
EAN 8424299305059
Hight 0.040
Length 0.400
Width 0.040
ACCESOS - SISTEMA Accessories
ACCESOS - SERIE Abrepuertas
Color Silver
Type Accessories
Product Brand Fermax
