Central Amplifier DTKOM MATV 41/53 dB with remote power supply from Televes

Central Amplifier DTKOM MATV 41/53 dB with Televes remote power supply
The TEL5338 central amplifier has its application as a horizontal MATV line amplifier.
This control unit can feed or be fed continuously through the coaxial cable itself, allowing current to pass through it. The use of quality cable T-100 or higher is recommended in the installation.
It has a variable equalizer at the input, from 0 to 18 dB of equalization for the entire band, as well as a variable attenuator from 0 to 18 dB.
Before putting it into operation, make sure it is correctly configured. From the factory, it is prepared to operate at 196-264 V ~ / 50-60 Hz with the input / output voltage step switches turned OFF.

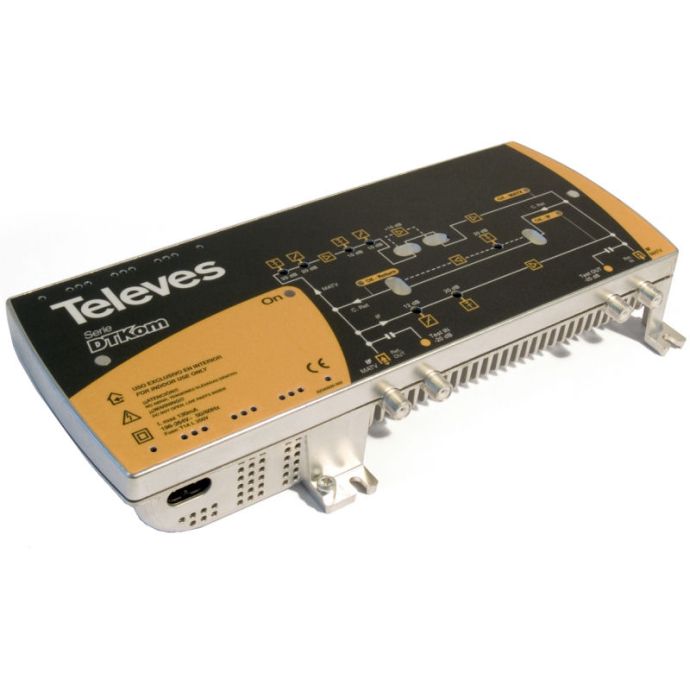

Central amplifier MATV DTKom 1 input 47-862 Mhz Televes TEL5338
What characteristics does the TEL5338 televes amplifier unit have?
Frequency range (MHz) 47 - 862
Gain (dB typ.) 41 - 53 (select)
Maximum output voltage (DIN 45004B) (dBμV typ.) 123
Maximum output voltage (EN 50083) (IMD3) (1) (dBμV typ.) 120
Maximum output voltage (IMD2) (1) (dBμV typ.) 116
Maximum output voltage CTB, CSO, XMOD (2) (dBμV typ.) 106
Noise figure (dB typ.) 10
Return loss (dB typ.) 10
Attenuation margin (dB typ.) 0 - 18
Equalization range (dB typ.) 0 - 18
Regulation range (dB typ.) 0 - 10
Supply voltage (V ~) 196 - 264
Total consumption (I. max) (mA ~) 130
Device consumption (mA) 700 @ 9Vdc
Operating range (ºC) -5 to +45
Protection index IP2
Here we have a video on our YouTube channel talking about DTKom amplifiers:
Reference | 5338 | ||
Inputs | bandas | MATV | |
Amplified Band | MHz | 47 - 862 | |
Gain | dB | 41 - 53 | |
Vout máx (DIN45004B) | dBµV | 123 | |
Noise figure | dB | 10 | |
Attenuation margin | 0 - 18 | ||
Equalization margin | |||
Pre-emphasis margin | 0 - 10 | ||
Additional gain switching | |||
Device consumption | mA | 700 @ 9 Vdc | |
Maximum current available I / O level | 700 | ||
Maximum number of control panels to be remotely powered | 1 | ||
Feeding | Vac | 196-264 |
EAN | 8424450128886 |
---|---|
System | DTT |
SERIE | DTKOM |
Color | Black |
Type | Line amplifier |
Entorno | Interior |
# Inputs | 1 |
Outputs | 1 |
Gain | 53 |
Max. output level Ganancia (dB/uV) | 120 |
LTE compatible | No |
Product Brand | Televes |
