Power amplifier DTKOM 1E / 1S CATV 1GHz

SKU
TEL451203
Brands: Televes
Availability: On request
1 to 7 days
Free shipping
(Iberian Peninsula)
€340.87 Tax included
Televes

Central amplifier DTKOM 1E / 1S

Televes' 451203 amplifier panel is a one-input and one-output panel designed for CATV operators and where its expanded bandwidth makes it compatible in DOCSIS environments.

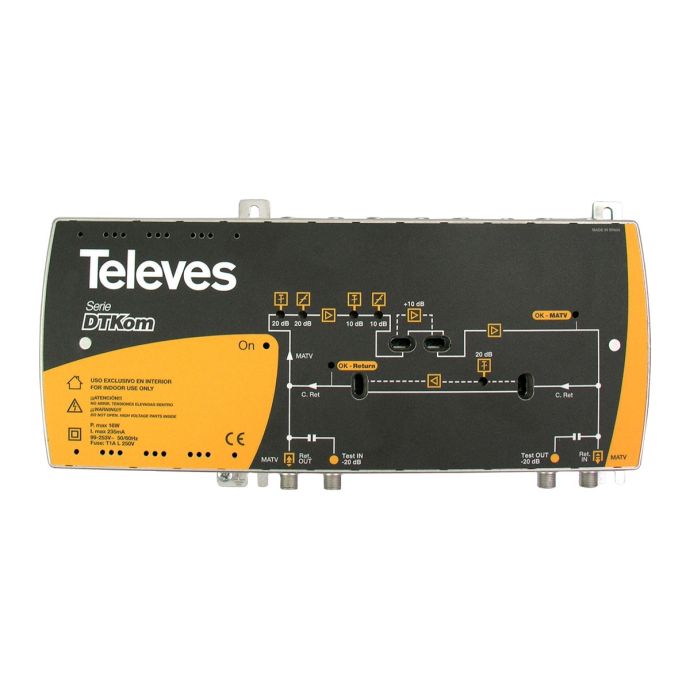

It has a very intuitive front panel, with a block diagram and an output signal indicator led.

It has an active or passive switchable return channel, which makes it possible to use it in CoaxData networks and integrates a high-performance, low-consumption switching power supply.

This central amplifier has a direct channel of up to 1GHz and a passive or active return channel of 5-65 Mhz.

You can visit our YouTube channel to find more information about amplifier units; Click here to enter the video.

Central amplifier DTKOM 1E / 1S TEL451203 of Televes

What technical characteristics does the central 451203 have?

  • Configurable gain 30 / 40dB
  • Direct channel up to 1GHz.
  • Passive or active return channel 5 - 65MHz
  • Equipped with equalizer, pre-accentor and gain control.
  • Designed with high power Power Doubling technology (129 dBμV DIN45004B)

What technical specifications does the 451203 central have?

Reference 451203
 Band MHz 87-1006 5-65
 Gain dB 30/40 28/-3
 Flatness dB ±1 ±1
 Maximum Output level dBμV 129 DIN45004B
119 EN50083 (IMD2)
126 EN50083(IMD3)
118 DIN45004B
94 EN50083 (IMD2)
115 EN50083(IMD3)
 Noise figure dB 8 6
 Interstage equalizer dB 0-10 -
 Equalizer dB 0-10 0-20
 Attenuator dB 0-20 -
 Main voltage VAC 99-253
 AC Power Comsumption W 16
 Protection Index IP 20
 Dimensions (W x Hx D) mm 280 x 142 x 48
 Weight g 2450
More Information
EAN8424450177587
SystemCATV
SERIEDTKOM
ColorBlack
TypeLine amplifier
EntornoInterior
Input signalDAB
# Inputs1
Outputs1
Gain40
Max. output level Ganancia (dB/uV)129
LTE compatibleNo
Product BrandTeleves
