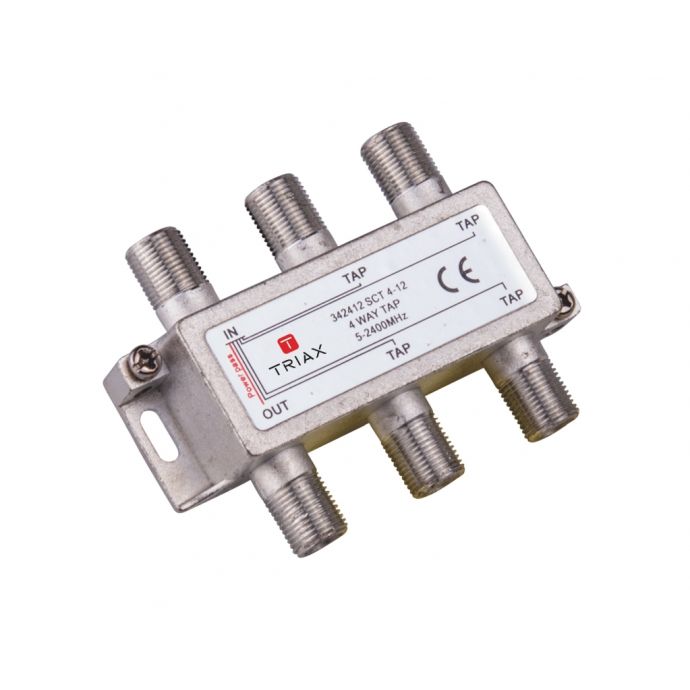

Derivator Connection F 4 Outputs -20dB
Internal 4-Output Derivator -20dB for DTT and SAT
Shunt with economic F connectors with 4 distribution outputs for the frequency band 5-2400 MHz with 20dB attenuation. This shunt admits the passage of DC current through the cascade connection with the shunt of the lower floor, allowing to supply a re-amplifier installed in the backbone network of the infrastructure.
The shunt's brand may vary based on availability.
4-output shunt with F connectors for the entire 5-2400 MHz frequency band (BI / BII / BIII / FM / DAB / VHF / UHF / FI).
What are the main characteristics of the 4-output and -20dB shunt?
- F type connectors
- Frequency band: 5-2400 MHz
- Entries: 1
- Step outputs: 1
- Bypass outputs: 4
- 20dB of derivation losses
- Supports DC current passage (only between plants)
- Indoor installation
- Top Brand Derivator
|System||DTT & SAT|
|TV-SAT Distribution Equipment||Diverter|
|TV-SAT Distribution Connection||F|
|Input signal||DAB, FI, FM, UHF, VHF|
|Insertion Loss (dB)||20|
