Splitter DTT-SAT F 6D 13dB 5-2300Mhz

SKU

REPARTIDOR6S

Brands: Cahors

Availability: In stock

Delivery: 24/48 Hours

€6.27 Tax included

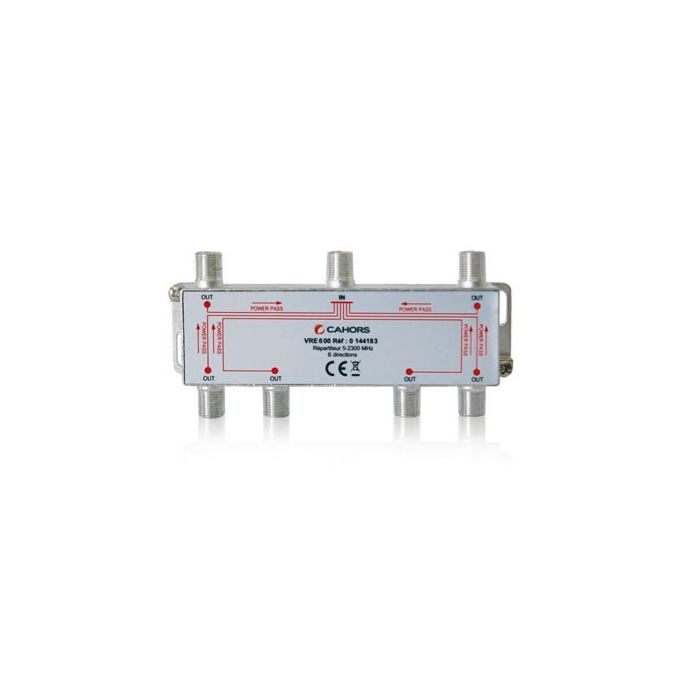

6-outputs distributor with F connector

The distributor VRE-600 is a distributor of 6 outputs of small size with connection F that allows to work in the frequency range of the 5 to the 2300 MHz.

This distributor has a good performance in the high frequencies, with low attenuations and high shielding efficiencies.

It also has a high insulation between outputs with current flow between inputs and outputs of 24Vdc maximum.

Details

The VRE-600 distributor has 6 outputs to distribute the signal coming from a coaxial cable by six different cables.

This distributor can be used in both a satellite and terrestrial installation, as it allows the passage of signal from both frequencies.

What technical characteristics does the VRE-600 dealer have?

It has 6 exits.
Loss of insertion:

12.5 dB in the range 5-1000 MHz.
16 dB in the 1000-2300 MHz range.

Rejection between outputs:

25 dB in the range 5-1000 MHz.
27 dB in the 1000-2300 MHz range.

Return loss:

9 dB in the range 5-1000 MHz.
11 dB in the 1000-2300 MHz range.

Allows current flow up to 24 Vdc.
It has an F-type connection.

What is the VRE-600 splitter used for?

This distributor or distributor is used in installations in which we want to divide our signal to transmit it by six different cables for six sockets of the installation.

More Information

More Information
EAN	8413671200020
System	DTT & SAT
SERIE	F-connector
Color	White
TV-SAT Distribution Equipment	Distributor
Entorno	Interior
TV-SAT Distribution Connection	F
Outputs	6
Input signal	DAB, FI, FM, UHF, VHF
Insertion Loss (dB)	18
Current bypass	Yes
Product Brand	Cahors
