Mast Amplifier 1e/1s UHF 40dB 12-24V LTE 5G

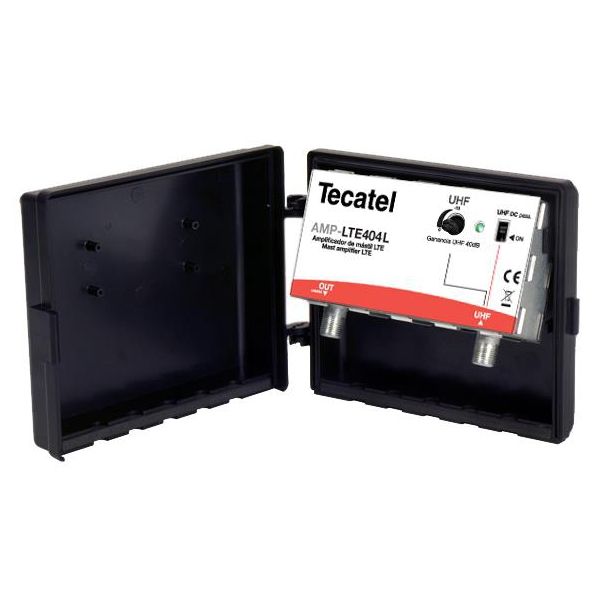

Tecatel AMP-LTE404L Mast Amplifier
Mast amplifier for TDT-UHF (470-690 MHz) with gain of 40dB adjustable (± 15dB) and adapted to the 2nd Digital Dividend with the LTE filter that integrates to eliminate interference caused by 5G. The maximum output it offers is 112 dBμV and has only a noise figure 3dB.
This equipment is powered at 12-24 Vdc so it can be installed together with a satellite collection system, has a consumption of 62 mA and allows the DC current passage to power the antenna if it is active.
The amplifier is protected with a black housing of 145 x 110 x 45 mm to be installed outdoors, on the mast of the DTT antenna.
Tecatel mast amplifier with manually adjustable 40dB gain and integrated 5G LTE filter.
What technical specifications does the Tecatel AMP-LTE404L mast amplifier have?
|Inputs||1 x UHF|
|Frequency range||470 - 690 MHz|
|Gain adjustment||15 dB|
|Output level||112 dBμV|
|Noise figure||3 dB typ.|
|Power supply||12 - 24 V|
|Power consumption||62 mA|
|Passage of electrical current||Yes|
|Index of protection||IP23|
|Dimensions||145 x 10 x 45 mm|
|Max. output level Ganancia (dB/uV)||112|
|Satellite signal supported||No|
