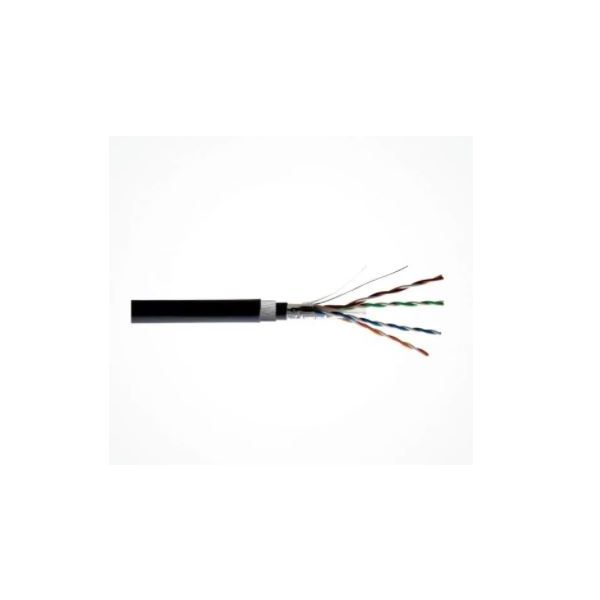

Outdoor Cable FPT CAT6 Coil 500 meters Bitel
Outdoor Cable FPT CAT6 Coil 500m Bitel
The FTP cable protects the internal conductors with a very thin laminated aluminum that covers the pairs, to avoid the external electromagnetic noise.
Category 6 FTP data cable, with rigid Copper (Cu) conductor and crossed PE sheath. Complies with the Gigabit Ethernet standard. Designed for 10 Base-T, 100Base-T and 1000 Base-T installations. Shielded cable and impedance 100ohm.
Working frequency: 1-250Mhz Classe E It comes in a 500 meter bovine.
Technical Specifications Outdoor Cable FPT CAT6 Coil 500m Bitel
Standard reference: ISO/IEC 11801: 2011
IEC 61156-5: 2012
EN 13501-6
EN 50173-1: 2011
EN 50173-2: 2007
EN 50288-9-1: 2012
EN 50288-4
EN 50575: 2014 + A1: 2016
EN 60332-1 [1,2], 60332-3C, 60754- [1,2], 61034- [1,2]
ANSI / TIA-568-6-2: 2009
Nominal temperature: 90ºC
Installation temperature: -30ºC. + 50ºC
Rohs/reach complied
DoP Number: N/C
App:
Token, 100 million tp-pdm
Analong and dating viceo
TR-16 active and passive
IEEE802.3: 100Base-T; 100Base-T; 1GBase-T
Conductor: solid bare copper 0.55 + -0.01mm
Insulation: FMPE-HDPE
Average thickness (mm): 0.32-0.26
Insulation diameter: 1.22-1.1
Filler (cross): PE
PET: yes
Drain cable: Conductor dia. (+/- 0.01 mm)
Tear cord: yes
Inner jacket: average thickness: 0.8
Packaging: 1 wooden drum
Color code: 1 white/blue 2 white/orange 3 white/green 4 white/brown
Weight: 260kg.
Packing length: 500
| System | CAT6 |
|---|---|
| Serie | 500m |
| Color | Black |
| Cobertura Exterior Cables | PE |
| Conductor Interno Cables | Copper (Cu) |
| Product Brand | Bitel Group |
| Icon | Label | Size | Download |
|---|---|---|---|
|
Ficha técnica Cable FTP CAT6 Bobina 500m Bitel | 479.4 KB | Download |
