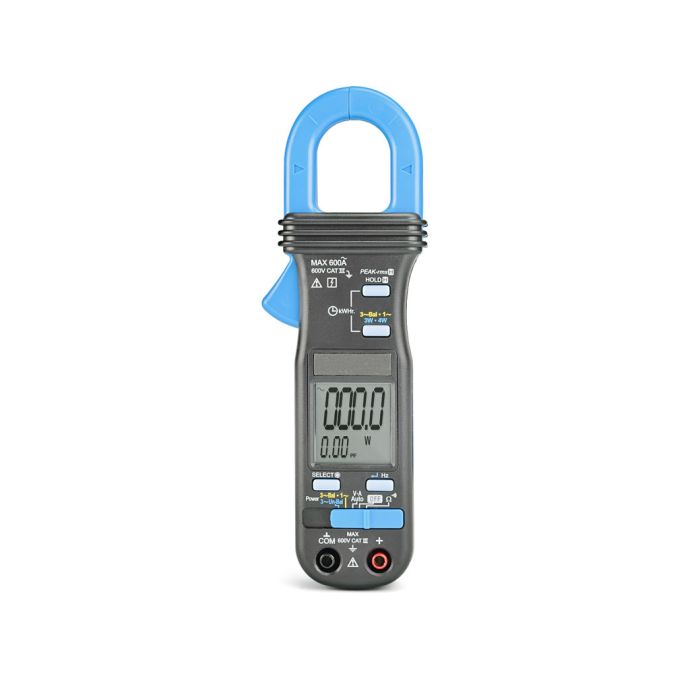

Unbalanced Three-Phase Wattmeter Clamp 600V/600A

SKU
PROIC640
Brands: Promax
Availability: On request
1 to 7 days
Free shipping
(Iberian Peninsula)
€340.49 Tax included
-
+

Unbalanced Three-Phase Wattmeter Clamp 600V/600A

This tool is portable, it is prepared to work in any environment or reduced space since it has protection against transients.

It is capable of measuring unbalanced three-phase loads and recording the consumption in kW/h in its memory. It performs the following measurements: DC/AC TRMS voltage, AC TRMS current, power and energy, power factor, resistance, continuity, frequency and records the energy consumed.

It has an easy and comfortable LCD screen to view, thanks to its large size. Simple and operational at the same time.

Technical Specifications of the 600V/600A Unbalanced Three-Phase Wattmeter Clamp



DC / AC TRMS VOLTAGE Up to 600V
TRMS AC CURRENT Up to 600A
TOTAL POWER FACTOR 0.1 to 0.99
BALANCED POWER Up to 600 kVA, single-phase and three-phase
ENDURANCE Up to 999.9 Ω
CONTINUITY TEST IAcoustic indication when the resistance is between 10 Ω and 500 Ω
FRECUENCY 5 to 500Hz
DETECTION OF INDUCTIVE SYSTEMS display indication
CONSUMPTION RECORD IN kWh The result of a balanced three-phase load and a single-phase load are stored in memory separately.
UNBALANCED THREE PHASE POWER Sequential measurement of each phase. For scenarios without severe fluctuations.
INDICATION Backlit LCD display
PRESENTATION FUNCTIONS HOLD (measurement hold), RMS peak hold, Automatic selection of VAC VDC or AAC measurement, Selection of energy parameters W, VAR and VA with total power factor (dual measurement on screen), Recording of consumption in kW/ h
POLARITY automatic
ØMAX DRIVER 26 mm
FEEDING 2 AAA size 1.5V batteries
PROTECTION CATEGORY CAT IV (300 V), CAT III (600 V)
ACCESSORIES INCLUDEDTest leads, Batteries, Carry bag
