OTDR Singlemode and multimode 850/1300/1310/1550nm 23/36/38/36dB

SKU
PROLITE53B
Brands: Promax
Availability: On request
1 to 7 days
Free shipping
(Iberian Peninsula)
€15,324.95 Tax included
Promax

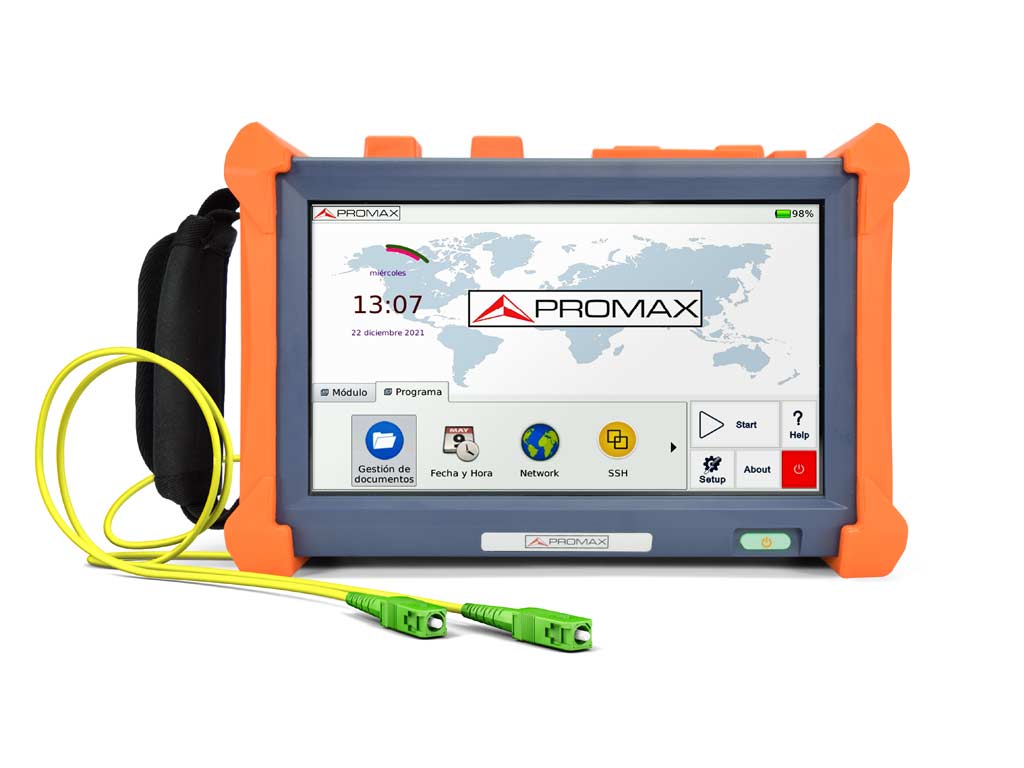

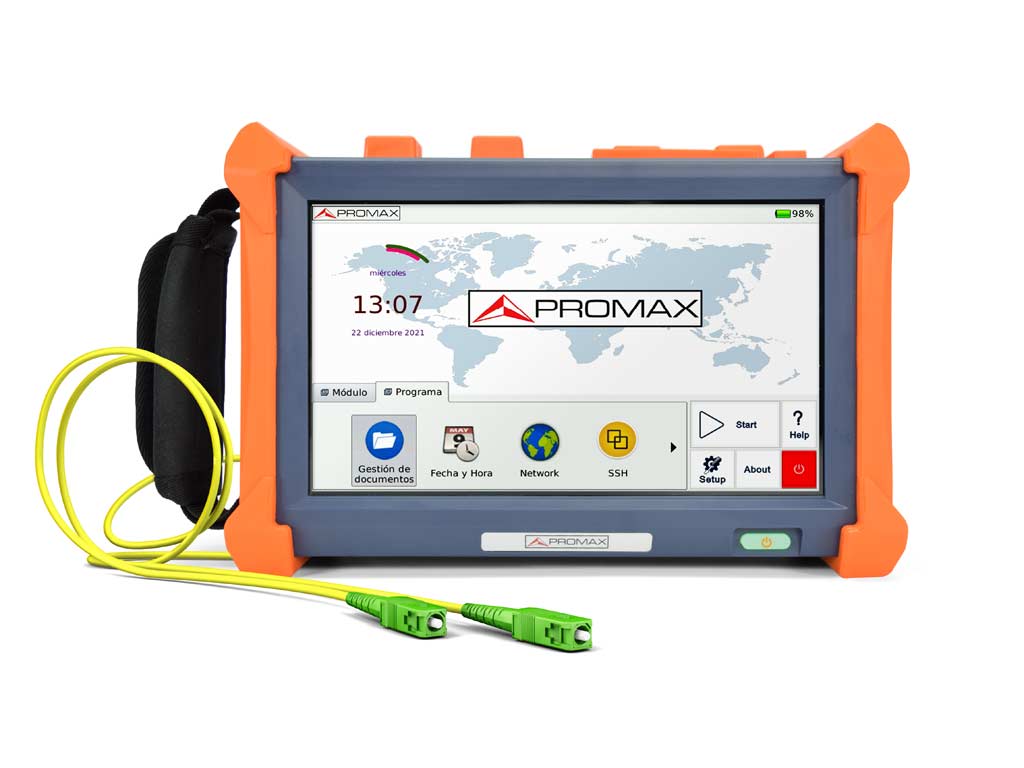

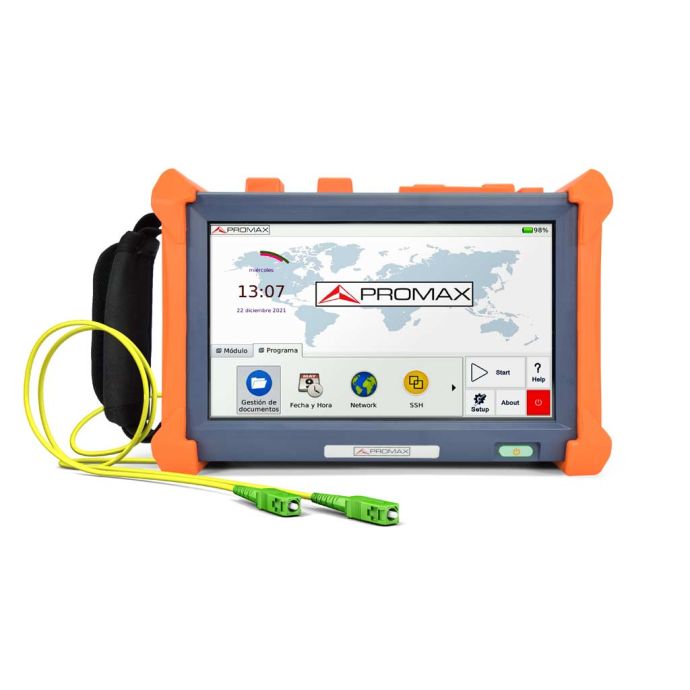

OTDR Singlemode and multimode 850/1300/1310/1550nm 23/36/38/36dB


Get this magnificent tool to locate errors in the optical fiber due to signal reflection. Locate leaks, breaks at the exact point where the fault is, saving work time. Physically locates the point of the network where there are failures or events.
This tool is ideal for the maintenance of fiber optic networks. It works for singlemode and multimode fibers with 4 wavelengths: 850, 1300, 1310 and 1550 nm and with a dynamic margin of 23, 28, 38 and 36dB respectively.
It has an 8” touch screen that will make your work much easier, intuitive thanks to its interactive menu. You can perform automatic or manual tests.
Easy to transport thanks to its ergonomic handle, you can connect it to the PC through the USB or RJ45 port. It has a data storage capacity of 8Gb.
Its 10h battery will make work very comfortable, since you will not have to have cables connected throughout your day.

Technical Specifications of the OTDR Singlemode and multimode 850/1300/1310/1550 nm 23/36/38/36dB





WAVELENGTHS (±20 nm)

850 / 1300 nm (Multimode) and 1310 / 1550 nm (Singlemode)

DYNAMIC RANGE

23 dB / 28 dB / 38 dB / 36 dB

FIBRE TYPE

Single mode, Multi mode

DEAD ZONE



EDZ (events)

1 m

ADZ (attenuation)

4.5 m / 4.5 m / 4 m / 4 m

CONNECTOR TYPE

SC/APC (SM), SC/UPC (MM)
(Interchangeable SC, FC, ST, LC)

VISUAL FAULT LOCATOR

Detection distance up to 5 km

SELECTABLE MARGINS



Single mode fibre

1.3 / 2.5 / 5 / 10 / 20 / 40 / 80 / 160 / 240 km

Multi mode fibre

1.2 / 2.5 / 5 / 10 / 20 / 40 km

PULSE WIDTH



Single mode fibre

5 / 10 / 30 / 100 / 300 ns; 1 / 2.5 / 10 / 20 µs

Multi mode fibre

5 / 10 / 30 ns; 1 / 2.5 µs

SCREEN

Touch screen TFT 8”

AVERAGE TIME

Quick / 15 / 30 / 45 / 60 / 90 / 120 / 180 s

STORAGE CAPACITY

8 GB

PC CONNECTION

USB, 10/100 Mbps RJ45

MASS STORAGE USB CONNECTION

Included

BATTERY OPERATION TIME

10 h

DIMENSIONS

235 (W.) x 159 (H.) x 75 (D.) mm

WEIGHT

1.5 kg

More Information
Product BrandPromax
SystemFiber Optic Meter
SERIEOTDR
