Alcad ZG-421 Amplificador UHF adyacente 50dB canal 47 outlet

SKU
ALCZG421-47
Availability: In stock
24/48 Hours
€149.75 Tax included
TDTprofesional , Alcad

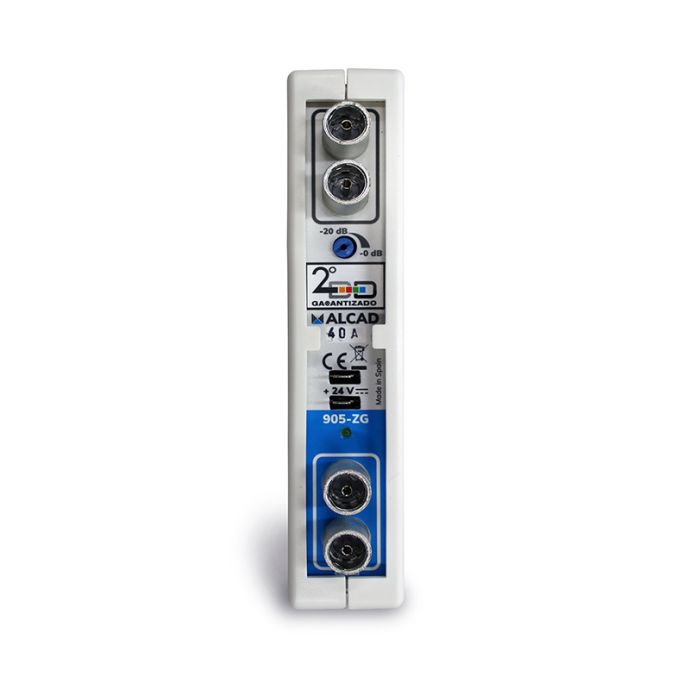

Adjacent Single Channel UHF Amplifier 50dB Alcad ZG-421 channel 47

Modular 50dB gain amplifier for the UHF band, designed to work with adjacent channels. It has high selectivity for independent EQ from each channel, resulting in perfect EQ.

This terrestrial single channel with specific design for adjacent channels offers optimum image and sound quality and equalization capacity thanks to its high selectivity. Each module has 3 input filters, amplifier and 2 output filters. There is an attenuator between stages to minimize the figure of noise.

These equipments are supplied with multiplexing and diplexing jumpers, plus the power cable.

Adjacent UHF single channel amplifier with 50dB gain and high selectivity channel 47.

What technical specifications does the Alcad ZG-421 single channel amplifier have?

CODE 9050039
MODEL ZG-421
TV System

DVB-T

AM TV

Number of channels 1
Frequency range Banda UHF
MHz 470-862
Gain dB 53 (±3)
Gain adjust dB 20
Gain loss with splitting dB 3.5
Maximum output level dBμV 120
Selectivity dB 50
Power supply Vdc 24
mA 75





More Information
ColorGray
TypeSingle channel amplifier
# Inputs1
Outputs1
Gain50
Max. output level Ganancia (dB/uV)120
LTE compatibleNo
Product BrandTDTprofesional
Write Your Own Review
You're reviewing:Alcad ZG-421 Amplificador UHF adyacente 50dB canal 47 outlet
Your Rating
File Label Size Download
pdf Ficha técnica del Amplificador Monocanal UHF Alcad ZG-421 142.5 KB Download
