RJ45 Media Converter -FO Singlemode SC/UPC TX:1550nm RX:1310nm from Televes

SKU
TEL769217
Brands: Televes
€53.51 Tax included
19% Discount for professionals
Televes
Availability: On request
1 to 7 days
Be the first to review this product

Televes Singlemode RJ45 SC/UPC Media Converter RJ45 SC/UPC

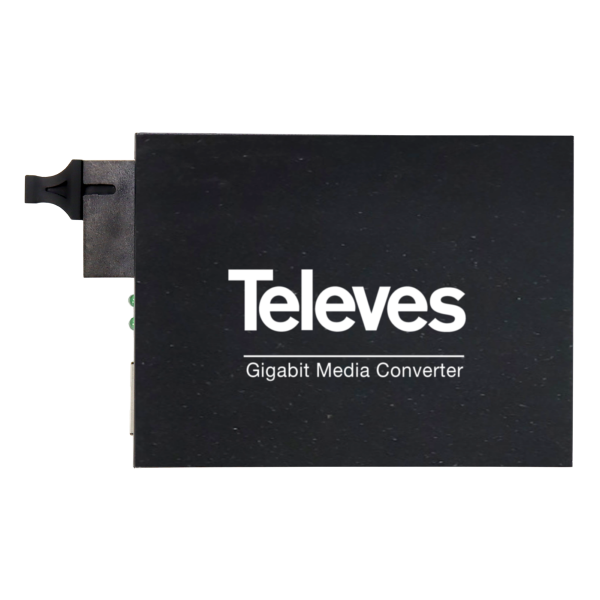

The 769217 Optical Media Converter is the ideal solution for extending Ethernet network communication over single-mode fiber optic links. Designed for environments that require data transmission over long distances, this device converts 10/100/1000Base-TX electrical signals received through an RJ45 connector into optical signals transmitted over single-mode fiber via an SC/UPC connector.

It is ideal for connecting offices or buildings separated by large distances of up to 10 km, ensuring fast and stable data transmission.

With easy Plug & Play installation, it is compatible with Cat 5 or higher data cables and complies with IEEE 802.3 standards. Its metal housing provides efficient thermal management and optimal durability, and also includes the power supply.

For proper operation, it is necessary to use this device together with the media converter reference 769216.

-
+

Technical Specifications of the Televes RJ45 SC/UPC Single-Mode Media Converter

Data connector type   RJ45
Number of Gigabit Ethernet ports (10/100/1000BaseT)   1
Number of FO ports (SC)   1
Fiber type   Monomode
Transmitter type   DFB
Transmitter wavelength nm 1550
Transmitter output power dBm -8 ... -3
Receiver type   PIN Photodiode
Receiver wavelength nm 1310
Receiver input power dBm -24 ... -3
Transmission distance km 0 ... 1
PoE power supply   No
Supply voltage Vdc 5
Max current m.a. 1000
Max power consumption IN 5
Operating temperature °C 0 ... 50
Storage temperature °C -20 ... 70
Housing material   Steel
Color   Black
