Digital Transmodulador T0X DVBS2 - COFDM

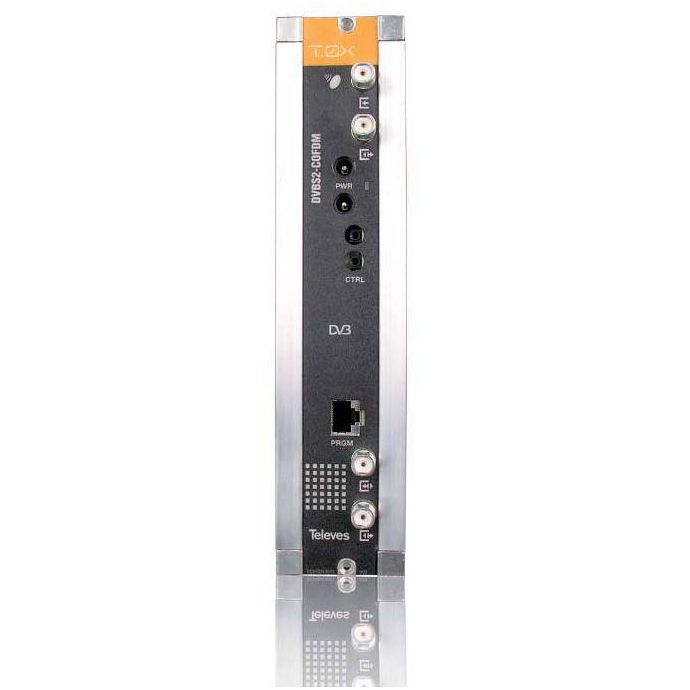

Digital transmodulator T0X DVBS2 - Televes COFDM
The Televes 563101 transmodulator receives a satellite transponder in one of the DVBS (QPSK) or DVBS2 (QPSK or 8PSK) modulation formats and demodulates it by obtaining an MPEG-2 transport packet.
Subsequently, the MPEG2 transport package is modulated in COFDM format and converted to the output channel (UHF or VHF and maximum bandwidth of 8 MHz).
The programming of the transmodulator operating parameters (input frequency, output channel, modulation format and adaptation of services mainly) is carried out by means of the universal programmer (ref 7234).
The transmodulator receives an SAT transponder in the DVBS (QPSK) or DVBS2 (QPSK / 8PSK) modulation formats and demodulates it by obtaining an MPEG-2 transport packet.
What technical characteristics does the transmodulator 563101 have?
- Total or selective elimination of the services present in the received transponder, so that they are not detected (and memorized) by the receivers (STB)
- Editable TS_ID, which facilitates the detection of programs / services in the receiver (STB) because they perform the scanning of channels based on this identifier
- LCN (Logical Channel Number), allows to assign to the services present in the output an LCN, which facilitates the ordering of the channels in the receivers (STB)
- It provides information about the occupation of each service and the total occupation of the output, which allows to optimize the distributed services
- Remotely controllable with the CDC (Head Control)
- Device monitoring LEDs and signal status
- S_ID editable, to avoid retuning of the receivers (STB) of an installation when the services of the output multiplex are changed
- Network_ID, Original Network_ID and Cell_ID editable, allows you to control network identifiers
- Through the CI interface and the corresponding CAM module, the coded satellite channels are transformed into free DTT services. Depending on the CAM used (standard / professional), one or more services can be opened for viewing in open
|System||DTT & SAT|
|Ficha técnica transmodulador 563101||38.5 KB||Download|
