Transmodulador Digital Satellite DVBS/2 - COFMD CI

Availability: On request
1 to 7 days
Free shipping
(Iberian Peninsula)
€1,009.29 Tax included

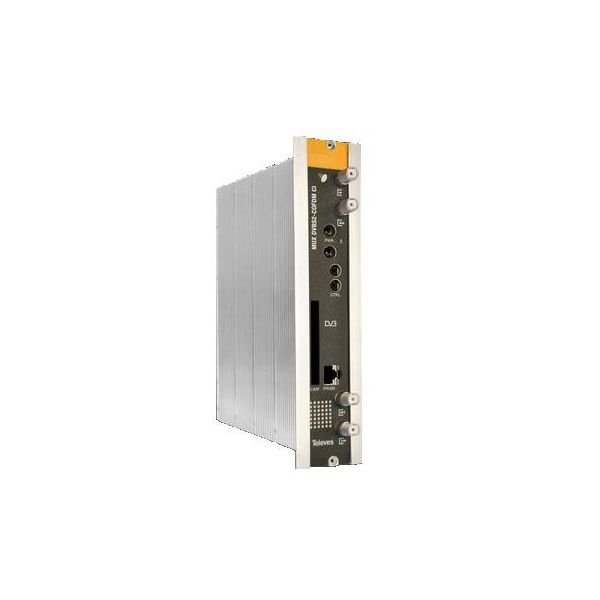

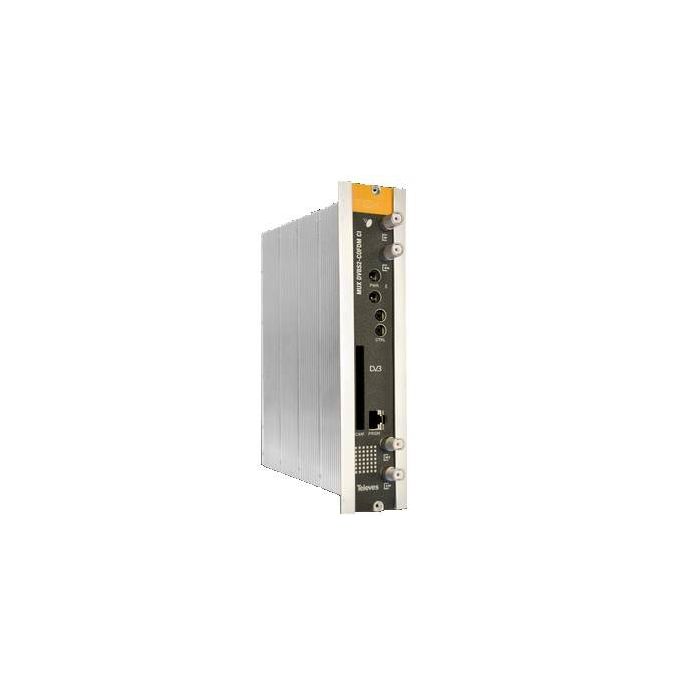

Digital Satellite Transmodulador DVBS / 2 - COFMD CI. Ref: TEL564201 of Televes.

Transmodulador generating a COFDM multiplex from multiplexing services available in up to 3 different SAT TV transponders. These can be drawn from two different satellites (two independent SAT-IF inputs), or a single satellite via the input loop to the head itself.

Televes TEL564201 transmodulators have a common interface to use a Conditional Access module and thus decrypt the content of one or more existing services in the transport packets received via satellite.


1 to 7 days
Free shipping
(Iberian Peninsula)


  • Edit Service_id allowing all STB / TV the installation automatically detect content changes of channels by the installer, without it being necessary to make the resintonitation.
  • Control Service_id. the warning device if configured the same service_id in more than a service that is appropriate to change it all or Culling.
  • services present in the multiplex than detected and stored by the TV or STB.
  • configurable and monitorable remotely
    by the driver headers (ref.5559-555901).
  • Edit and control of ts_id, Network_ID, Original Network_ID and Cell_ID.
  • LCN (Logical Channel Number).
    allowing assign services present in the multiplex output
    an identifier for ordination in receptors.
  • Selective Filtering PID (Package Identifier).
    to optimize the use of CAM.
1 to 7 days
Free shipping
(Iberian Peninsula)
More Information
EAN 8424450160503
System DTT
Color Black
Type Transmodulator
Input signal DVB-S, DVB-S2
Output signal COFDM
Model / Family T0X
# Inputs 2
Outputs 2
Output mux 1
Common interface Yes
Product Brand Televes
Write Your Own Review
You're reviewing:Transmodulador Digital Satellite DVBS/2 - COFMD CI
Your Rating
Icon Label Size Download
pdf Ficha técnica transmodulador 564201 899.4 KB Download
