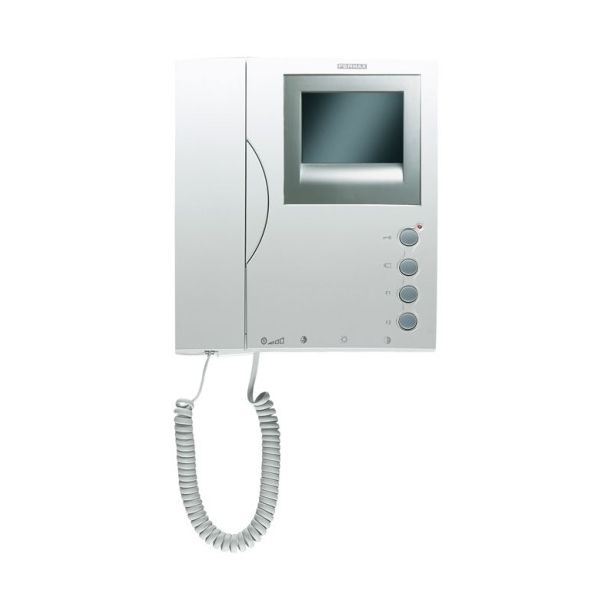

Monitor LOFT VDS Color 3.5" Fermax 3305

The Fermax 3305 monitor is a 3.5" color VDS video intercom from the LOFT series

What technical characteristics does the Fermax 3305 Monitor have?

• 3.5" TFT screen
• Resolution: 480 (H) x 234 (V) lines
• The terminal incorporates a magnet in the area of ​​the handset that allows the arm to be well hung and fixed to the base
• This prevents the arm from falling during its hanging, damaging the wall and also prevents it from causing damage to the installation due to being poorly hung
• Dimensions: 220x203x60 mm (height-width-depth)
• Power supply: 18 Vdc
• Door opener button and call to concierge
• Auto power button for main and sub camera activation (sequentially)
• Call volume regulation
• Regulation of color, brightness and contrast
• On / off control
• Doorbell: for direct connection of the house call button to the monitor / telephone
• Two selectable ringtones.
• It has 2 buttons for additional functions (without assigned function)
• Private communication. Conversation secret
• Consumption:
• Standby: 8 mA
• Active: 400 mA

What functions does the Fermax 3305 Monitor offer?

• VDS system
• Simplified installation door entry and video door entry system that does not use call wires per dwelling
• The call is made by transmitting a digital call code generated by the VDS amplifier
• In new construction, the installation can be carried out with the following type of wiring:

  • UTP CAT5
  • 5 Threads
  • 3 wires + Coaxial (video)
• It allows managing buildings with up to 199 homes, 2 entrance entrances and a concierge center
• Maximum distance from first access to last home: 200 m
• In replacement, it is possible to change from analog to video door entry phone taking advantage of the existing wiring. The capacity and distance of the system will depend on the installation wiring
• The VDS amplifier includes a voice synthesizer as standard. When the opener is operated, a message is issued: "door open, close after entering"
• The residential terminals require a simple programming that is carried out from the entrance panel. Through this programming, each terminal (telephone or monitor) is assigned a calling code
• Communication is private
