SMILE 3.5" Color VDS Basic Monitor

SKU

FER6545

Brands: Fermax

Availability: In stock

Delivery: 24/48 Hours

€314.60 Tax included

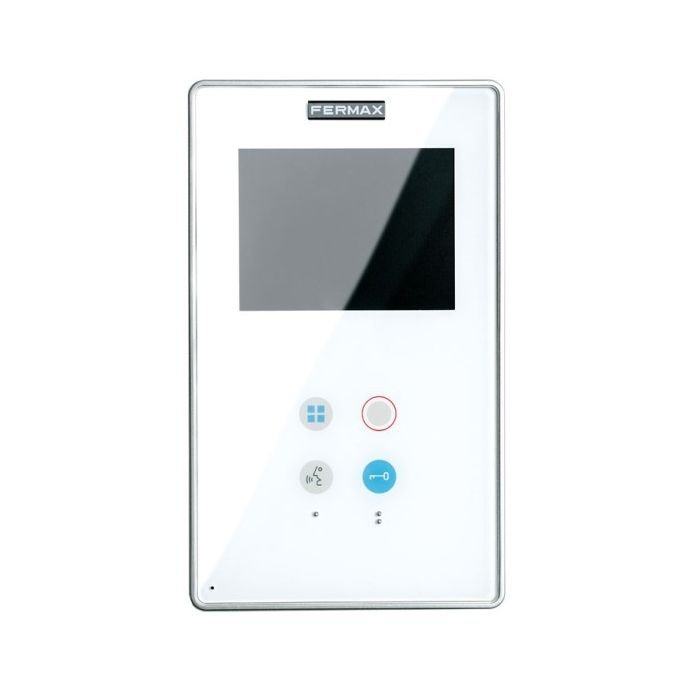

SMILE 3.5" Color VDS Basic Fermax 6545 Monitor

SMILE monitor with TFT 3.5" Color screen for Fermax VDS video door entry systems. Allows hands-free communication with the entrance panel, seeing the visitor and opening the door.

Compact design in a modern and elegant style; with a smooth surface, rounded corners and an extra-flat profile. Made of high impact ABS plastic and with the front part covered with a transparent methacrylate sheet with high ultraviolet protection.

To mount it, the Fermax 6565 connector for SMILE monitors is required, which is sold separately. This connector allows surface mounting, although it can also be installed flush in the wall by adding the Fermax 6546 flush box or using the Fermax 6566 desktop support.

Details

Monitor SMILE 3.5" Color TFT screen for Fermax VDS video intercom

What technical specifications does the Fermax 6545 SMILE 3.5" Monitor have?

Cabling:

Audio: 3-wire bus
Video: 5 Wire / 3 Wire + Coaxial (video)
Maximum distance from first access to last home: 200 m

3.5 "TFT screen
Resolution: 320 (H) x 240 (V) lines
SURFACE Monitor Dimensions (Installed on the wall, its extra-flat profile protrudes only 20 mm from the wall)
SMILE 3.5 ”172x103x20 (height-width-depth)
FLUSH-MOUNTED Monitor dimensions (When SMILE is embedded, only 4 mm emerge from its profile. For this type of installation, the same terminal is used, incorporating only a flush-mount box and a trim frame)
Dimensions once embedded:

SMILE 3,5 ”196x127x4 (height-width-depth)
3.5 ”trim frame: 196.4 x 127.4 (height-width)
Fermax 3.5 ”monitor flush box dimensions: 186 x 116 x 46 mm (height-width-depth)

System power: 18 Vdc
Door release button and concierge call
Auto power button for main and sub camera activation (sequentially)
Button to establish communication
Button to end communication
Call volume regulation
Color, brightness and contrast regulation
Doorbell: for direct connection of the house call button to the monitor / telephone
It has 2 buttons for additional functions (without assigned function)
Private communication. Conversation secret
Total hands-free operation, once the entrance panel-home channel is activated, communication is simultaneous
Consumption:

Standby: 33 mA
Active: 550 mA

Monitor with OSD screen: It incorporates an intuitive menu through graphic icons so that the installer can carry out the programming of the monitor functions according to the needs of the installation and also for the user who can access the user settings for personalization. that is, the profile of use of your equipment: brightness and contrast, type and volume of melodies, additional functions, activate and deactivate the silent mode, etc...
