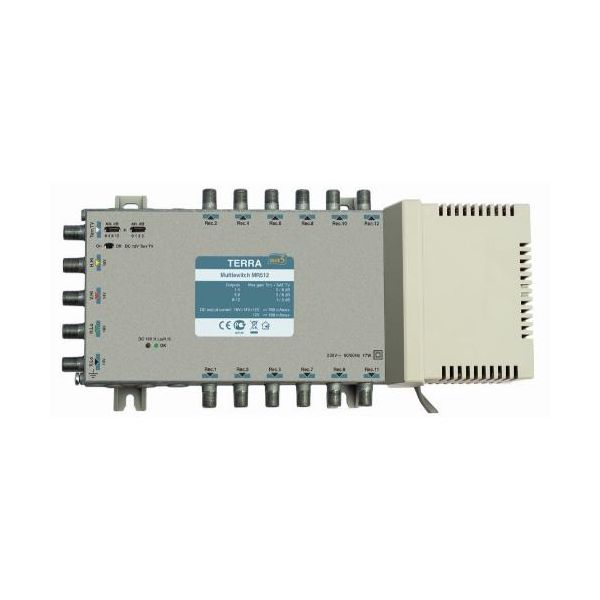

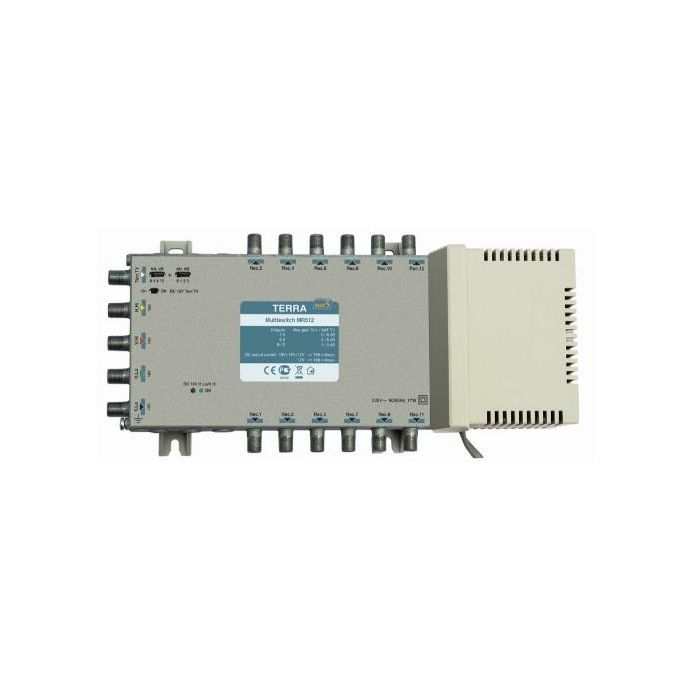

Radial Active IF Multiswitch 5 Inputs x 12 Outputs Terra

SKU
TERMR512
Brands: Terra emp
Availability: On request
1 to 7 days
Free shipping
(Iberian Peninsula)
€188.01 Tax included
-
+

Active Radial Multiswitch 4IF + TERR, 12 OUT Terra TE-MR512

Terra's autonomous multiswitch with 5 inputs (4 satellites + 1 Terrestrial) and 12 outputs. Multisatellite equipment for star distribution of 4 SAT polarities and Terrestrial TV up to 12 users.

Thanks to the MR512 multiswtch we will be able to distribute 1 complete satellite (H/L, H/H, V/L, V/H) together with Terrestrial up to 12 homes. Allowing each user to choose the satellite polarity they want to view at all times.

Range of high quality Terra multswitches, designed to offer solutions in small and large collective SAT installations.



Radial Active Multiswitch with 4 IF + 1 TERR Inputs and 12 Outputs

What technical specifications does the Terra MR512 Multiswitch have?

  • Number of inputs: 5
  • Number of outputs: 12
  • Frequency range:
  • SAT: 950-2400 MHz
  • TV: 47-862 MHz
  • SAT gain:
    • Output 1-4: 0 ... 8 dB
    • Output 5-8: -1 ... 6 dB
    • Output 9-12: -2 ... 3 dB
  • TERR gain:
    • Output 1-4: -1 ... 5 dB
    • Output 5-8: -2 ... 3 dB
    • Output 9-12: -3 ... 1 dB
  • Maximum output level for SAT IF (IMD3 = 35dB): 96 dBuV
  • Maximum output level for terrestrial TV (DIN45004B):
    • Output 1-4: 88 dBμV
    • Output 5-8: 86 dBμV
    • Output 9-12: 84 dBμV
  • Isolation between SAT inputs:> 30 dB
  • Isolation between outputs:> 30 dB
  • DC voltages at the inputs: H/Lo, H/Hi - 18V; V/Lo, V/Hi - 14V; Terr. TV - 12V
  • Current consumption (from receiver input): <65 mA
  • Control signals: 14/18V, 0/22kHz, Tone Burst or DiSEqC 2.0
  • Power consumption: 230V ~ 50/60Hz 2W
  • Operating temperature range: -20 ºC ~ +50 ºC
More Information
EAN 8430549012479
System Satellite
SERIE Autónomo
Color Gray
Type Final
# Input satellites 4
# Terrestrial inputs 1
# Inputs 5
#User outputs 12
Gain (dB) 8
Loos (dB) 3
Power Embedded
LNB type Quattro
Product Brand Terra
