Active Radial IF Multiswitch 5 Inputs x 24 Outputs Terra

SKU
TERMR524
Brands: Terra
€395.60 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

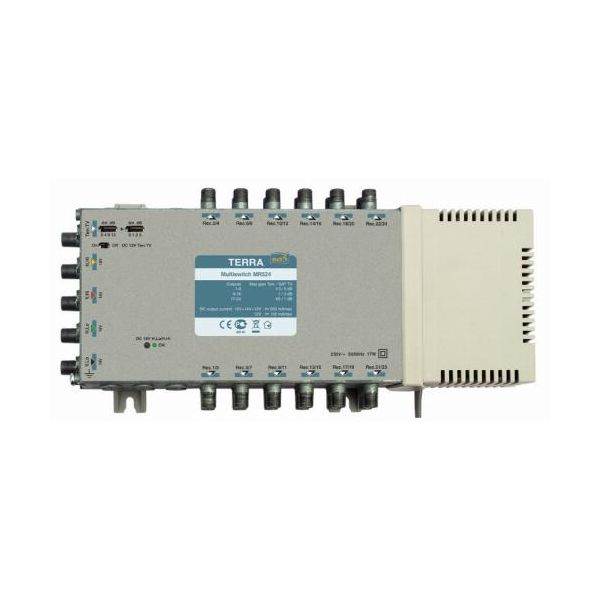

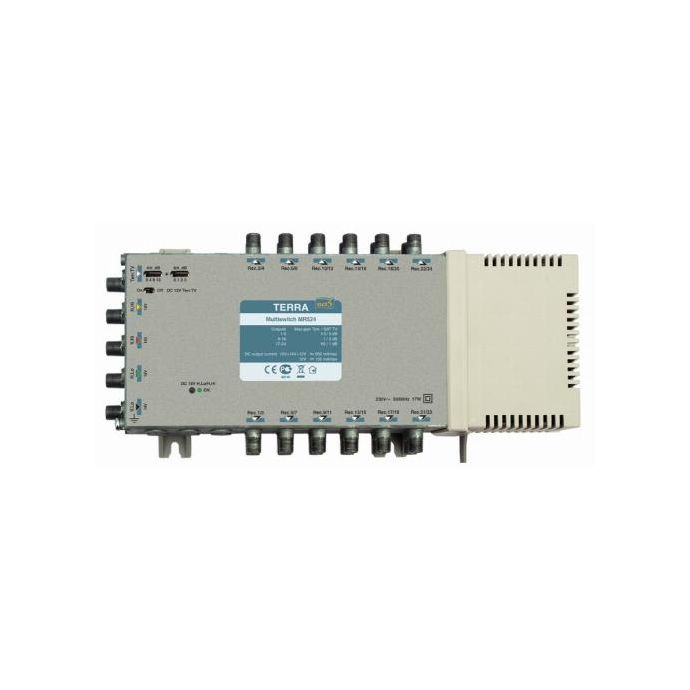

Active Radial Multiswitch 4IF + TERR, 24 OUT Terra TE-MR524

Terra's radial SAT multiswitch with 5 inputs (4 IF + TERR) and 24 outputs, for star distribution of 4 satellite polarities and terrestrial signal up to 24 users.

System that allows the distribution of 1 complete satellite (H/L, H/H, V/L, V/H) mixed with terrestrial TV in a collective installation of up to 24 homes. In this way, each user can choose at all times the polarity to be displayed.

The range of Terra multiswitches offer high performance and scalability for all types of collective installations, from 8 to 32 homes.



-
+

Active Radial Multiswitch with 4 IF Inputs + 1 TERR and 24 Outputs

What technical specifications does the Terra MR524 Multiswitch have?

  • Number of inputs: 5
  • Number of outputs: 24
  • Frequency range:
  • SAT: 950-2400 MHz
  • TV: 47-862 MHz
  • SAT gain:
    • Output 1-8: -3 ... 5 dB
    • Output 9-16: -4 ... 3 dB
    • Output 17-24: -5 ... 1 dB
  • TERR gain:
    • Output 1-8: -2 ... 3 dB
    • Output 9-16: -4 ... 1 dB
    • Output 17-24: -5 ... 0 dB
  • Maximum output level for SAT IF (IMD3 = 35dB): 96 dBuV
  • Maximum output level for terrestrial TV (DIN45004B):
    • Output 1-8: 86 dBμV
    • Output 9-16: 84 dBμV
    • Output 17-24: 82 dBμV
  • Isolation between SAT inputs:> 30 dB
  • Isolation between outputs:> 30 dB
  • DC voltages at the inputs: H/Lo, H/Hi - 18V; V/Lo, V/Hi - 14V; Terr. TV - 12V
  • Current consumption (from receiver input): <65 mA
  • Control signals: 14/18V, 0/22kHz, Tone Burst or DiSEqC 2.0
  • Power consumption: 230V ~ 50/60Hz 3W
  • Operating temperature range: -20 ºC ~ +50 ºC
More Information
EAN 8403109900011
Hight 0.300
Length 0.080
Width 0.250
System SAT Satellite
MANUFACTURER SERIE SAT Autónomo
Type Final
# Input satellites 4
# Terrestrial inputs 1
# Inputs 5
#User outputs 24
Gain (dB) 5
Loos (dB) 5
Power Embedded
LNB type Quattro
Product Brand Terra
