Radial Active IF Multiswitch 5 Inputs x 8 Outputs Terra

SKU
TERMR508
Brands: Terra emp
Availability: On request
1 to 7 days
Free shipping
(Iberian Peninsula)
€159.87 Tax included
-
+

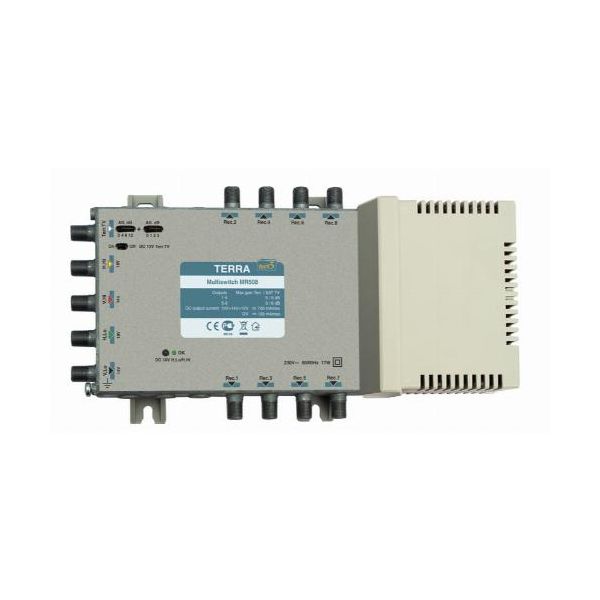

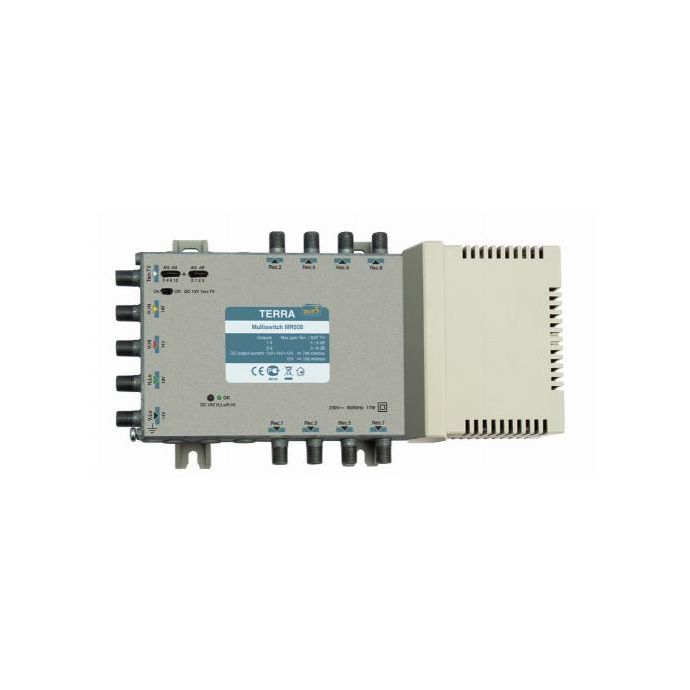

Active Radial Multiswitch 4IF + TERR, 8 OUT Terra TE-MR508

Terra radial multiswitch with 5 inputs: 4FI + 1 TERR and 8 outputs. Equipment for distribution of 4 satellite polarities in small communities of up to 8 users.

This multiswitch allows 1 complete satellite (H/L, H/H, V/L, V/H) to be transmitted up to 8 homes. Thanks to the multiswitch, each user has the possibility to choose the satellite polarity they want to receive at any time.

Terra has a wide range of high-performance multiswitches for both small and large collective installations.



Active Radial Multiswitch with 4 IF Inputs + 1 TERR and 8 Outputs

What technical specifications does the Terra MR508 Multiswitch have?

  • Number of inputs: 5
  • Number of outputs: 8
  • Frequency range:
    • SAT: 950-2400 MHz
    • TV: 47-862 MHz
  • SAT gain:
    • Output 1-4: 0 ... 8 dB
    • Output 5-8: -1 ... 6 dB
  • TERR gain:
    • Output 1-4: -1 ... 5 dB
    • Output 5-8: -2 ... 3 dB
  • Maximum output level for SAT IF (IMD3 = 35dB): 96 dBuV
  • Maximum output level for terrestrial TV (DIN45004B):
    • Output 1-4: 88 dBμV
    • Output 5-8: 86 dBμV
  • Isolation between SAT inputs:> 30 dB
  • Isolation between outputs:> 30 dB
  • DC voltages at the inputs: H/Lo, H/Hi - 18V; V/Lo, V/Hi - 14V; Terr. TV - 12V
  • Current consumption (from receiver input): <65 mA
  • Control signals: 14 / 18V, 0/22kHz, Tone Burst or DiSEqC 2.0
  • Power consumption: 230V ~ 50 / 60Hz 2W
  • Operating temperature range: -20 ºC ~ +50 ºC
More Information
EAN 8430549012462
System Satellite
SERIE Autónomo
Color Gray
Type Final
# Input satellites 4
# Terrestrial inputs 1
# Inputs 5
#User outputs 8
Gain (dB) 8
Loos (dB) 2
Power Embedded
LNB type Quattro
Product Brand Terra
Write Your Own Review
You're reviewing:Radial Active IF Multiswitch 5 Inputs x 8 Outputs Terra
Your Rating
File Label Size Download
pdf Ficha técnica de Multiswitches Terra de 5 Entradas 604.7 KB Download
