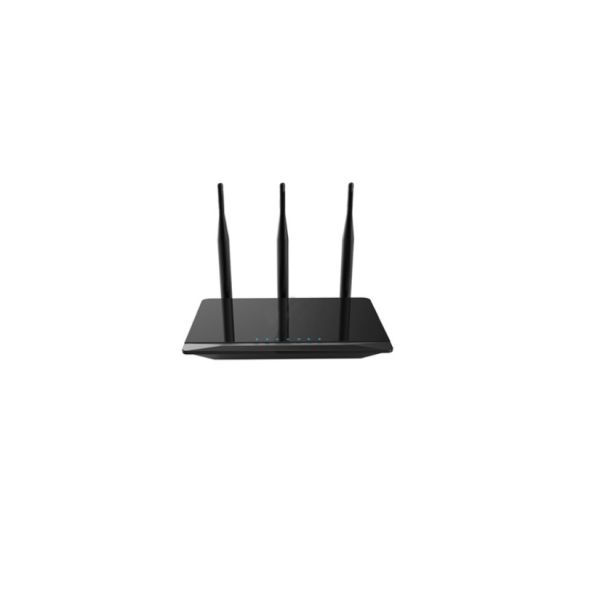

NCom Net Router N 300Mbps NJ-3R

The NJ-3R router of NuCom allows the connection to the internet with a transmission speed of up to 300 Mbps.

What technical characteristics does the NJ-3R router have?

• Compliance with IEEE 802.11n.
• Compatible with previous versions with 802.11b / g.
• Integrates router, wireless access point, four-port switch and firewall in one.
• 2.4GHz, wireless transmission speeds of up to 300Mbps (2T2R).
• LAN port 4x10 / 100Mbps, WAN port 1x10 / 100Mbps.
• Fixed antenna 3x5dBi.
• WDS Wireless Bridge.
• Built-in firewall, IP address filtering, MAC address, domain name, applications, etc.
• Supports 64/128 bit WEP, WPA / WPA2 encryption.

What technical specifications does the NJ-3R router have?

• SPECIFICATION
• Standard
• IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u
• Chipset: MTK7628N
• Interface: LAN 4 10 / 100M Auto MDI / MDIX RJ45 port. WAN 1 10 / 100M Auto MDI / MDIX RJ45 port.
• Frequency range: 2.4GHz-2.4835GHz.
• Radio data rate: 300M
• Channel 1 ~ 11 (USA, Canada); 1 ~ 13 (Europe); 1 ~ 14 (Japan).
• Spread Spectrum: DSSS
• Modulation: BPSK, QPSK, CCK and OFDM (BPSK / QPSK / 16-QAM / 64-QAM).
• Transmission distance: inside up to 100 m, outside up to 300 m (it is limited in one environment).
• Receive Sensibility @ PE
• 11n: -70dBm @ 10% PER
• 11g: -70dBm @ 10% BY
• 11b: -85dBm @ 8% PER
• Transmission power: 19dBm
• Fixed antenna 3x5dBi.
• LED indicator status
• Data security: 64/128 bits WEP; WPA / WPA2
• Operating temperature of the environment: 0ºC ~ 4ºC (32ºF ~ 104ºF).
• Operating Humidity: 10% ~ 90% RH (without condensation).
• Power 5V / 1A
• Operating humidity 10% ~ 90% without condensation.
• Dimensions 142 mm x 91 mm x 28 mm
• Security and Emissions CE
