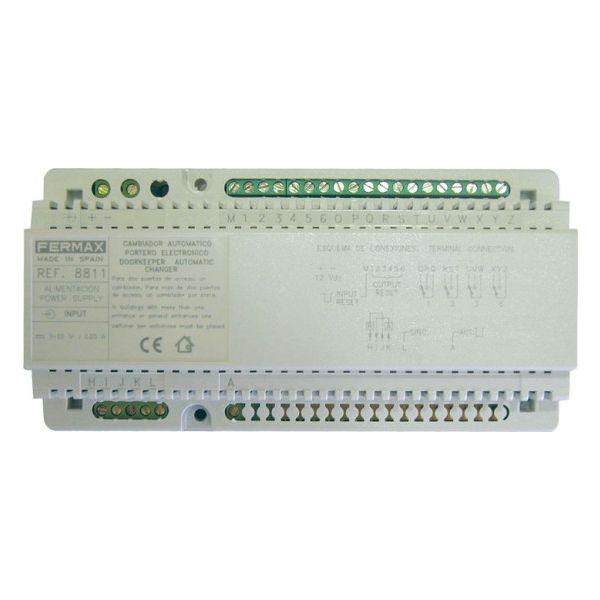

Automatic Switcher 4+N DIN10 Fermax
Automatic Switcher 4+N DIN-10 Fermax 8811
Automatic switcher for Fermax facilities with several accesses. Allows you to connect the home phone / monitor with the panel from where the call is made. Recommended for buildings with up to 50 neighbors and for urbanizations with a general entrance and interior blocks.
Equipment compatible with the Fermax 4+N analog audio/video entry system. 1 changing table is required for each access, up to a maximum of 7 accesses. Only in case of 2 accesses 1 changing table is needed.
DIN-10 rail format for installation inside an electrical equipment box or screwed to the wall.
Automatic Switcherr for conventional 4+N systems with several Fermax accesses
What technical specifications does the Fermax 8811 Automatic Switcher have?
- Audio: 4 common wires + N (1 call wire per dwelling)
- Video: 7 common wires + 1 video coaxial + N (1 call wire per home)
- Power supply: 12 Vdc
- Consumption: 150 mA
- Timing: 90 seconds approx.
- DIN 10 dimensions: 175x 90 x60 mm
- System power:
- Audio: 12 Vac
- Video: 18 Vdc
