Cityline door kit (4 + N) for 20 homes

Availability: In stock
SKU:
FER4875
24/48 Hours
Free shipping
(Iberian Peninsula)
€517.05 Tax included
Fermax

20L Analog Porter Kit

The Fermax 4875 electronic gateway kit uses a 4 + N analog transmission system (1 wire per housing).

Door entry kits for buildings include all the material required for complete installation and immediate operation: street plate and recess box, DIN 12Vac / 1.5A feeder (ref.4800) and 20 LOFT telephones.

24/48 Hours
Free shipping
(Iberian Peninsula)

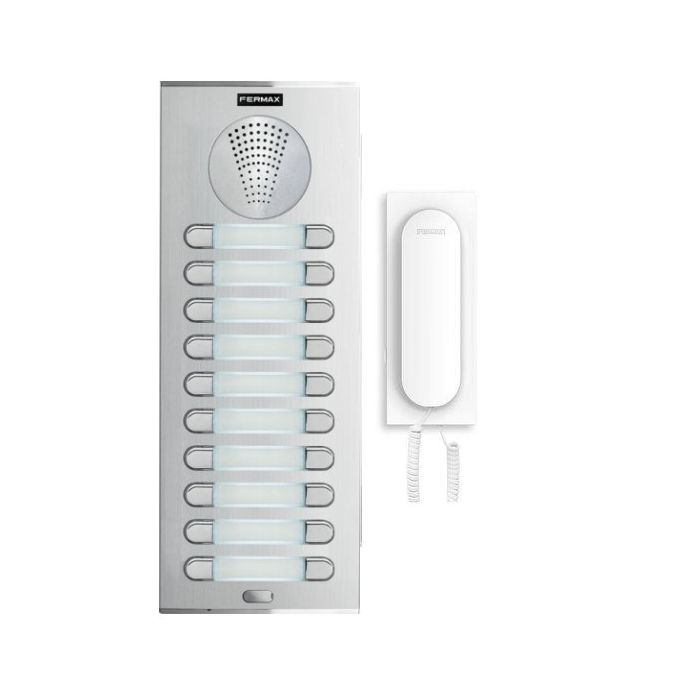

The Fermax 4875 kit is an analog electronic doorphone kit for 20 homes.

What does the Fermax 4875 kit include?

  • CITYLINE 4 + N 4858 plate and 8856 recess box.
  • Street plate S6: 130 (H) x294 (V) mm.
  • Flushbox S6: 115 (H) x280 (V) x45 (P) mm.
  • Telephone LOFT BASIC 4 + N 3393 (14 units).
  • 12Vac / 1A power supply. DIN4 4802.
  • KIT EXPANSIONS AND ACCESSORIES:
  • 2º Access: Request the reference of the plate included in the kit and its recess box + audio changer (ref.8811) + voltage distributor (ref.8809).
  • Extension in dwellings without extra power: 3 telephones (ref.3393).
  • Recommended door opener: 450N-S door opener (ref.3071). Normal operation and short shield. 12Vac.

What technical features does the 4875 kit have?

  • Consumption Leds illumination: 3.5 mA per card holder.
  • Series 6 plate.
  • Plate dimensions: 130x294 mm (width-high).
  • In-box dimensions: 115x280x45 mm (width-high-deep).
  • Measures box surface: 130x294x33 mm (width-high-deep).
  • Power System:
  • Audio: 12 Vac
  • Video: 18 Vdc
  • Consumption:
  • at rest: 65 mA.
  • call: 600 mA.
  • active audio: 100 mA.
  • audio + video: 180 mA (camera consumption: 80mA)
  • IPK-437
  • Power audio sense home-street: 2W
  • Sound power street-dwelling sense: 0.15W
  • Volume adjustable in both directions
  • Operating temperature: -10 to 60 ° C
24/48 Hours
Free shipping
(Iberian Peninsula)
More Information
EAN 8424299487502
Color White
Color Portero/Videoportero Solo Audio
