End outlet diplexed with Male CEI output for VHF/UHF (109-862 MHz) and Female CEI output for FM (87.5-108 MHz). Easy connection of the cable, by simple push and without screws.
Outlet with minimal insertion loss: 0.5dB for TV and 3dB for FM. This outlet does not include a bypass outlet for cascading.
Compatible with Ø 5-7mm RG6 coaxial cable.

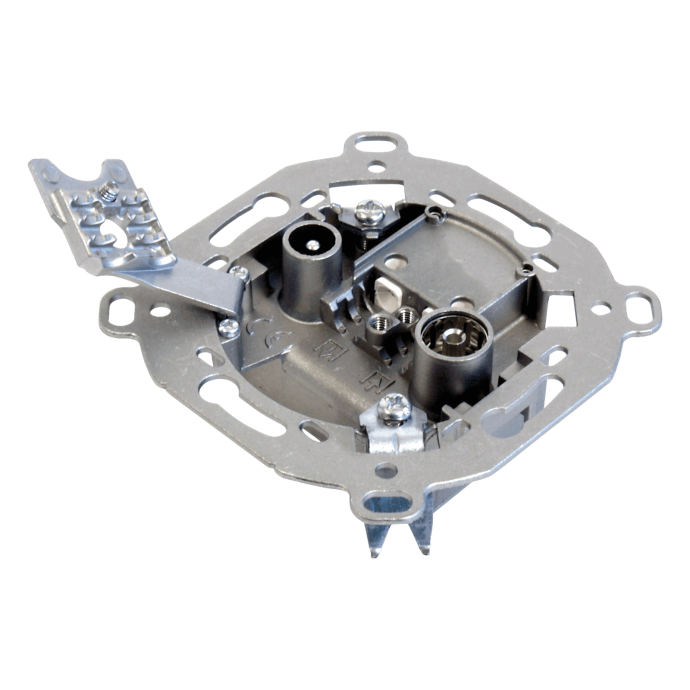

Televes TV-FM outlet with clamps and 2 CEI-type outputs.
| Type | T-SCATV | ||||
| Band | FM (87,5-108MHz) |
VHF (109-470MHz) |
UHF (470-862MHz) |
||
| Connector | “IEC” Female | “IEC” Male | |||
| Fastening method | W/o screws | ||||
| Rejection between outputs | dB | - | - | ||
| Output pass | No | ||||
| Insertion loss | dB | - | |||
| Attenuations | Out: FM | dB | 3 | - | |
| Out: TV | - | 0,5 | |||
| DC pass (24V – 350mA)) | No | ||||
| EAN | 8424450052327 |
|---|---|
| Hight | 0.071 |
| Length | 0.033 |
| Width | 0.072 |
| System | DTT |
| SERIE | Network Termination |
| Color | Silver |
| TV-SAT Distribution Equipment | Connection |
| Entorno | Interior |
| TV-SAT Distribution Connection | IEC |
| Outputs | 2 |
| Input signal | DAB, FM, UHF, VHF |
| Insertion Loss (dB) | 3 |
| Current bypass | No |
| Product Brand | Televes |
| File | Label | Size | Download |
|---|---|---|---|
|
Ficha técnica de la toma final TV-FM Televes 5232 | 440.5 KB | Download |
