Televes 5-3000 Mhz noise generator FI simulator

SKU
TEL593001
Brands: Televes
Availability: In stock
24/48 Hours
Free shipping
(Iberian Peninsula)
€524.49 Tax included
-
+

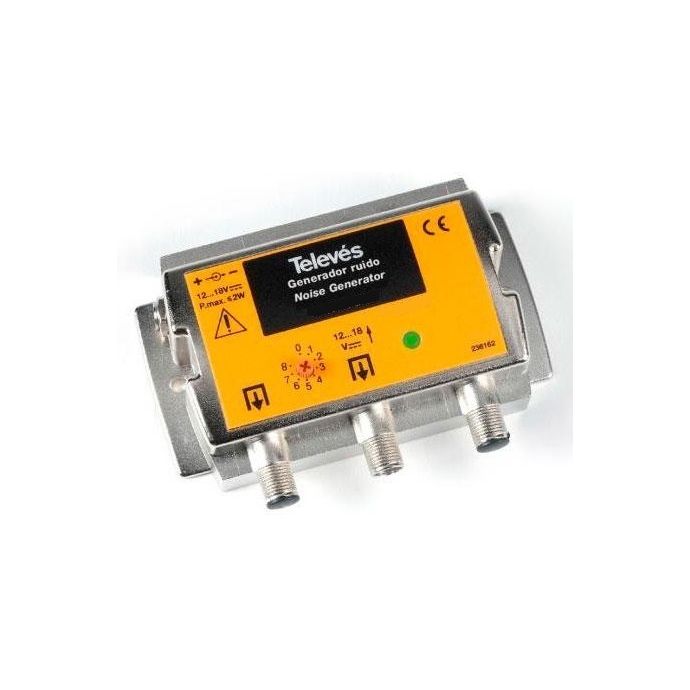

Televes noise simulator 593001.

Televes 593001 is a device designed to perform attenuation and flatness tests in SMATV and CATV installations, using it in conjunction with a Televés FSM or MTD series field meter.

It has a rotary switch that allows to vary the level of output in 10 ± 2 dB in 10 steps.

This generator operates in a frequency range between 5 and 3000 MHz, in addition to having a maximum output level of 80 ± 3 dBμV.

Televes 593001 noise generator allows us to perform attenuation and flatness tests in SMATV and CATV installations

What technical features does the 593001 noise generator have?

References 593001
Frequency range MHz  5...3000
Max output level dBµV  80 ±3 (3 MHz)
Output level regulation dB  0...10
Power (via coaxial cable or AC adapter) Vdc  12...18
Consumption W  2
Dimensions mm  98 x 65 x 27

How do I use the 593001 noise generator?

More Information
EAN 8424450171080
Color Yellow
Product Brand Televes
System Signal simulator
SERIE Tester
