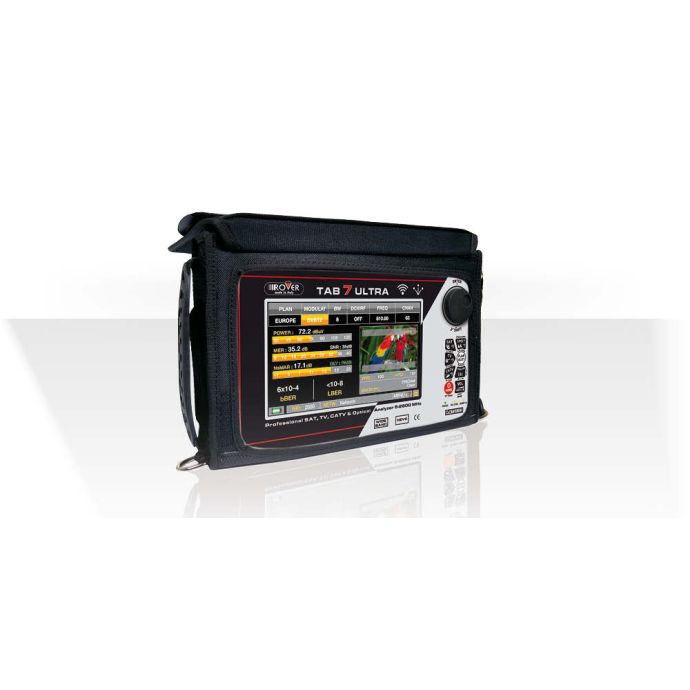

HD TAB700 field meter from Satellite Rover

SKU

ROVHDTAB700

Brands: ROVER

Availability: On request

Delivery: 1 to 7 days

€2,223.39 Tax included

HD TAB700 Field Meter from Rover

Do you want a professional field meter? The HD TAB700 field meter from Satellite Rover allows both tdt and satellite measurements (DVB S-S2 / T-T2).

This meter is capable of measuring signals from 4 to 2,600 MHz. It also measures analog TV signals (only measurement) and performs LTE analysis.

The dual touch screen interface and physical buttons allow easy use in all conditions.

It is also equipped with a 2 Ah lithium polymer battery and a soft bag with shoulder strap.

Details

The HD TAB700 field meter is a field meter for terrestrial and satellite signals, with a power range of 28 to 130 dBμV in terrestrial and 30 to 130 dBμV in satellite.

What technical characteristics does the HD TAB700 field meter have?

Frequency range: TV and CATV TUNER, extended band, 4-1250 MHz; SAT TUNER, extended band, 930-2,610 MHz; Extended GSM band, 860-1,000 MHz for telephone repeater installation
Input impedance: 75 ohm (interchangeable connector "F")
Digital measurements: digital power, MER, BER, PER, LDPC, BCH, noise margin, MER versus CARRIER
Analog measurements and image: analog level, V / A ratio
Power range Measures: TV 28 to 130 dBμV, SAT 30 to 130 dBμV
Net-id on board: Net-Id, NID, TSID, LCN, SAT Orbit position
Fast spectrum with MAX HOLD: full spectrum capabilities with memory peak, variable span and automatic reference level
Constellation: for TV / CATV and SAT signals
Echoes, Pre-echoes, Micro-echoes: Real-time representation
Quality: Quality test Digital auto: PASS-MARGINAL-FAIL
Digital images: MPEG2-4 SD and HD images with program list, audio and video PID, LCN, video bit rate, all on one screen
TV memory plan: countries around the world with pre-memorized related channel plans
SAT memory plan: more than 2,000 pre-memorized satellite transponders from around the world
Manual memory plan: programmable TV, SAT (or combined TV / SAT) by computer or local keyboard
Loggers: TV, SAT and combined with the stop & go function
Audio: AAC supplied, DOLBY (opt)
Optical power meter: with SC connector for fiber optic tests (FTTH and FTTX) (optional)
Free SMART PC interface program and FW updates
7 "TFT TOUCH screen: high resolution 16: 9
DC voltage at the RF input: 5 - 12 - 18 - 24 V, DiSEqC, SCR and dCSS
Battery: Li-Po battery pack, 2 hours long
Power supply and battery charger: 12 Vdc, 1A
USB interface for PC: for SW update and memory plan management
USB interface for PC: for storage memory
Housing: metal box and easy bag (Elite opt. Bag)
Weight: only 1.4 Kg
Size: H 25.5 x W 13.0 x D 4.0 cm (only meter)
