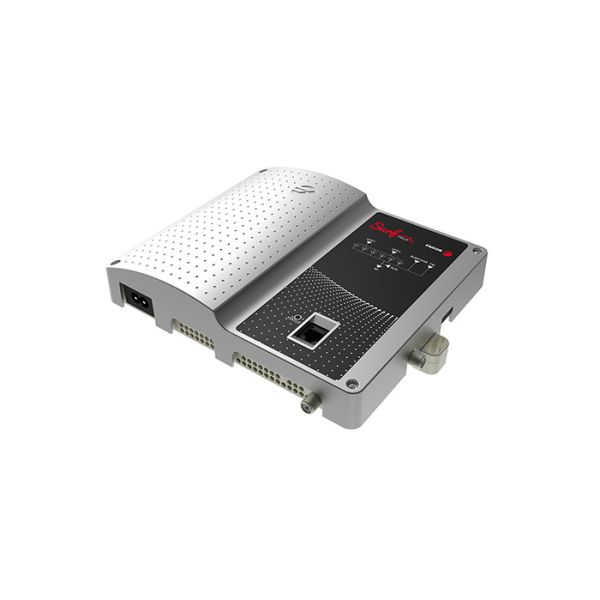

Surf Pro 6 Programmable Central with 5 Inputs 2UHF/1VHF/1FM/1AUX 45dB by Fagor

SKU

FAG35562

Brands: Fagor

Availability: On request

Delivery: 1 to 7 days

€225.69 Tax included

Central Surf PRO 6 Programmable with 5 inputs 35562 from Fagor

This is a programmable selective amplifier for headend systems in medium-sized installations. Programming is done through the Fagor UCF 300 programming unit.

It has 5 inputs: 2XUHF/1xVHF/1Xfm/1Xaux. The output level can be adjusted automatically. Its casing is of the metallic type, which achieves great shielding, preventing signal loss. The UHF inputs are programmable in 5 filters of variable width from 1 to 6 channels.

This programmable control unit is adapted to the second digital dividend/up to 694MHz).

Details

Fagor 35562 35562 Programmable Central Surf PRO 6 Technical Specifications

MODEL	SURF PRO 6 D2
Reference	35562
Band	BI/BIII	UHF	FM	Auxiliar
No. of entries	1	2	1	1
No. of filters	Broadband	6	Broadband	1
input configuration	-	6 - 0 4 - 2 3 - 3	-	-
band covered MHz	47 ÷ 68 174 ÷ 230	470 ÷ 694	87,5 ÷ 108	47 ÷ 68 132 ÷ 862
Programmable filter width	-	1÷ 6 channels	-	-
dB gain	35	45	30	18
Independent dB regulation per channel	≥30 -
Selectivity N (±16 MHz) dB	-	20	-	-
dB noise figure	6			-
Operating input level dBμV	55	50 ÷ 93	71 ÷ 101	75 ÷ 90
Output level DIN 45004B dBμV	117		107 @ –35 dBc	117
Output operating level 10 channels dBμV	107
Output dB level setting range	95 ÷ 107
Decoupling between dB inputs	UHF > 20 dB VHF/UHF/FM > 50			-
DC Step	-	12-24V / 50mA (Programable)	-	-
Packaging dimensions mm	195 x 70 x 32
weight kg	0,45

More Information

More Information
System	DTT
SERIE	Surf Pro
Color	Silver
Type	Programmable station
Entorno	Interior
Input signal	FM, UHF, VHF
# Inputs	5
Gain	45
Max. output level Ganancia (dB/uV)	107
LTE compatible	No
Current bypass	Terrestrial
Product Brand	Fagor
