Mast Amplifier 2 Inputs UHF/VHF 24dB

SKU

FTELG262

Brands: Fte

Availability: In stock

Delivery: 24/48 Hours

€13.79 Tax included

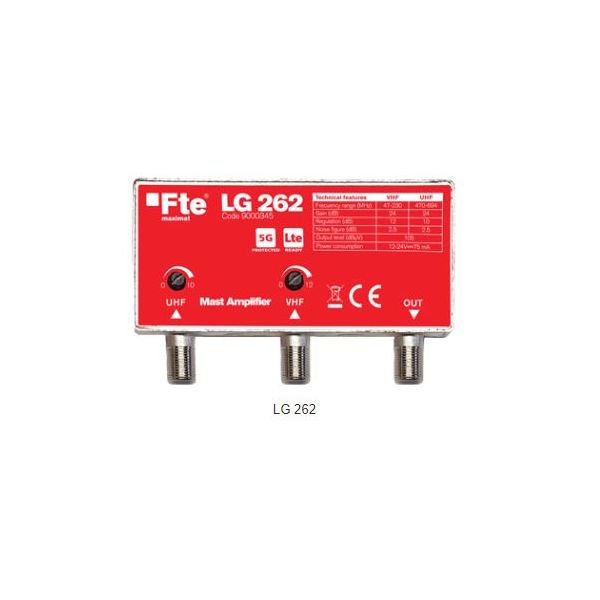

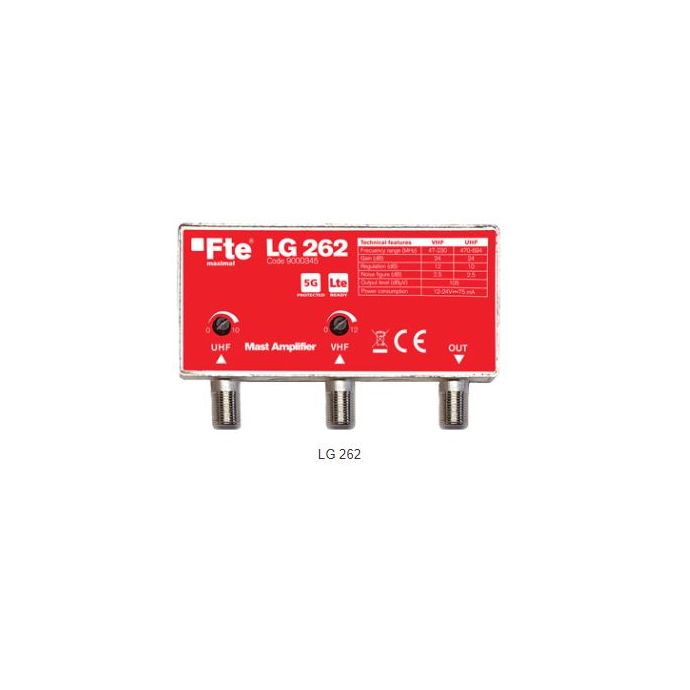

LG 262 2 Input UHF/VHF 24dB Mast Amplifier

Low gain amplifier with 2 UHF/VHF inputs and a maximum output level of 105 dBμV. This amplifier works in the 47-694MHz frequency band. Its use is indicated in single-family homes, placing the amplifier normally on the antenna mast.

Its 3 connectors corresponding to two inputs and one output are type F female. For outdoor placement, the amplifier comes with an LG 262 outdoor protective box included and a 300 x 14.8 mm flange.

This amplifier has a low gain of 24dB and has a maximum consumption of 75mA.

Details

Technical Specifications of the LG 262 Mast Amplifier with 2 UHF/VHF 24dB Inputs

LG 262

Code

9000345

Input and bands

2: VHF / UHF (C21-C48)

number of outputs

Connector type

F Hembra

Range of frecuency

47 - 230 / 470 - 694 MHz

Gain

VHF

24±1 dB

UHF

24±1 dB

Gain regulation

VHF

12 dB

UHF

10 dB

Noise figure

VHF

£ 2.5 dB

UHF

£ 2.5 dB

Input return loss

VHF

³10 dB

UHF

³10 dB

Output return loss

³10 dB

Output level DIN 45004 B IMD3 -60 dB ^{105 dBµV}

RED selectivity classification

Maximum consumption

75 mA

Supply voltage

12 a 24 VDC

Current consumption

75 mA

Dimensions (An. x Al. x P)

without box

97 x 60 x 22 mm

with box outdoor

115 x 138 x 53 mm

individual packaging

120 x 148 x 66 mm

Accessories included

Outer box and flange 300 x 14.8 mm

Master box dimensions

350 x 255 x 320 mm

Units per master carton

20 pcs

Code EAN 13

8436545306680

More Information

More Information
EAN	8436545306680
System	DTT
SERIE	F-connector
Color	Silver
Type	Mast amplifier
Entorno	Exterior
Input signal	UHF, VHF
# Inputs	2
Outputs	2
Gain	36
Max. output level Ganancia (dB/uV)	105
LTE compatible	No
Current bypass	Terrestrial
Product Brand	Fte
