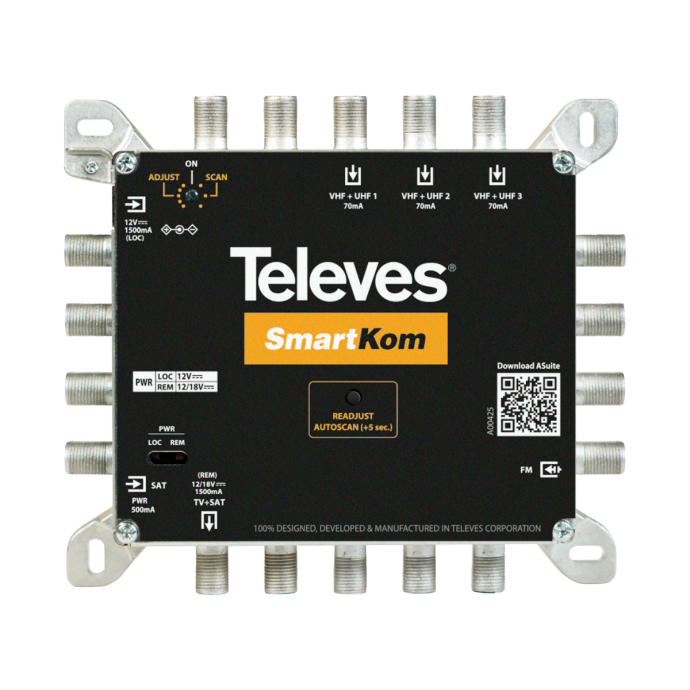

Televes SmartKom Intelligent Indoor Amplifier

SKU

TEL531920

Brands: Televes

Availability: In stock

Delivery: 24/48 Hours

€178.84 Tax included

Televes SmartKom 531920 Smart Indoor Amplifier

This amplifier is interior, it is placed inside the house, at the head of the building. It can be powered remotely via the output connector (connected to a power supply or trunk distribution) or via an external power supply (eg with the 732101) connected via jack.

This amplifier can be programmed automatically with the push of a button, thanks to its auto-program function. It includes a Bluetooth antenna with which manual programming can be done from a phone or tablet by downloading the ASuite application.

This amp is 3 in 1: it amplifies, mixes and balances in a single press. The channels are assigned and adjusted automatically, it is also intelligent and is capable of activating the power of the antenna when it detects that the signal requires it.

Details

Technical Specifications of the Televes SmartKom 531920 Smart Indoor Amplifier

Inputs/Bands		3x VHF+UHF	FM	SAT
Frequency range	MHz	174-230/470-694	87,5-108	950-2150
Input dynamic range	dBμV	40-80	-	-
Maximum gain	dB	45	-1	-2
Gain regulation	dB	CAG	-	-
Number of filters		32	-	-
Channels per filter		1	-	-
Channel/filter programming		5-12 (VHF) 21-48 (UHF)	-	-
Filtered channel level regulation		AGC per filter	-	-
Selectivity	dB	28/12 @1MHz*	>20 @20MHz	>40 (@87-694MHz)
Output level	dBμV	82 (VHF) 85 (UHF)	-	-
Vout regulation	dBμV	57-82 (VHF) 60-85 (UHF)	-	-
Manual regulation	dB	±3	-	-
Noise figure	dB	7 (VHF) 6 (UHF)	-	-
Powering inputs	Vdc	12 (AUTO/ON/OFF)	-	12
Max. consumption inputs	mA	70	-	500
Max. consumption	mA	500 (@12V w/o DC IN)
Protection index	IP	23
Operating temperature	ºC	-5 ... +45

More Information

More Information
EAN	8424450271940
System	DTT & SAT
SERIE	SmartKom
Color	Black
Type	Indoor home amplifier
Entorno	Interior
Input signal	DAB, FM, UHF, VHF
Gain	45
Max. output level Ganancia (dB/uV)	85
LTE compatible	No
Current bypass	Satellite, Terrestrial
Product Brand	Televes
