Fiber4Sat Module. Optical DWDM Transmitter (2 SAT + DTT)

SKU

TEL237910

Brands: Televes

Availability: On request

Delivery: 1 to 7 days

€7,393.55 Tax included

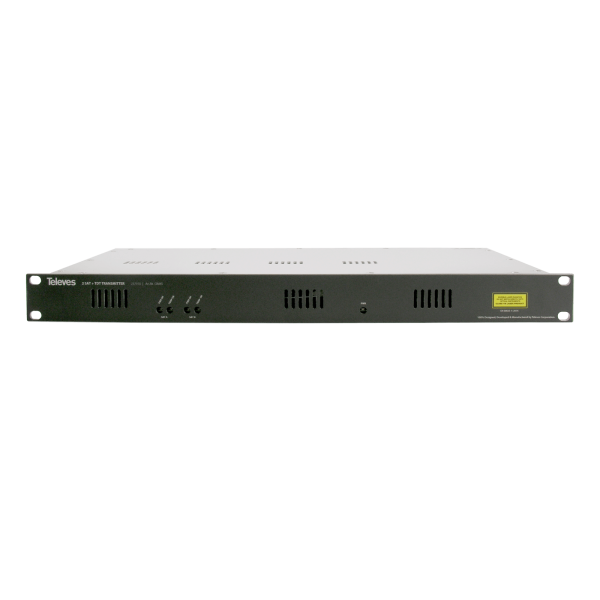

Fiber4Sat module. Optical Transmitter DWDM (2 Satellites + DTT) Televes 237910

Device that receives the satellite signal from 2 optical LNBs and distributes it together with the DTT over a single fiber to the different users with the DWDM (Dense Wavelength Division Multiplexing) transmission technique. You transmit the 2 complete satellites (8 polarities) on the same fiber.

Televes Fiber4Sat modules reach greater distribution distances with higher bandwidth and less signal loss. Up to 64 users. The equipment itself allows the supply of the 2 LNBs.

Format for rack cabinet mounting.

Details

Fiber4Sat module. Optical Transmitter DWDM of 2 Satellites + DTT for 64 users

What are the main characteristics of the Fiber4Sat Televes 237910 Module?

Two complete satellites + RF (DTT/QAM) over a single fiber
DWDM based transmission (Dense Wavelength Division Multiplexing)
Allows the powering of all 2 LNBs using the equipment with Ref. 237910
Up to 64 users
8 Polarities on a single fiber
Higher distribution distance
Smaller signal losses
Higher bandwidth
Rack mounting
Easy installation

What technical specifications does the Fiber4Sat Televes 237910 Module have?

OPTICAL INPUTS
Inputs number		2 (SAT) 2 (External)
Maximum optical power	dBm	+3 (SAT) +7 (External)
Power self-regulation range	dBm	-5...+3 (SAT)
Bandwidth		1100...1650 (SAT) CH31, CH32 (External)
Optical connectors	type	SC/APC (SAT) SC/PC (External)
OPTICAL OUTPUT
Outputs number		1
Wavelengths at the output connector	nm	1551.72, 1552.52 (SAT) 1550.12, 1550.92 (External)
Output optical connector	type	SC/APC
RF INPUT
Connector	type	F
Impedance	Ohm	75
Bandwidth	MHz	47...862
Self-controlled input range	dBµV	75...90
GENERAL
Voltage	Vac	110 - 230
Frequency	Hz	50/60
Maximum input power consumption (when powering 4 LNBs)	mA	450
Input voltage at F connectors for satellite power supply	Vdc	12
Maximum current in F connectors for satellite power	mA	450
Operating temperature	ºC	-5...45
Protection index	PI	20
