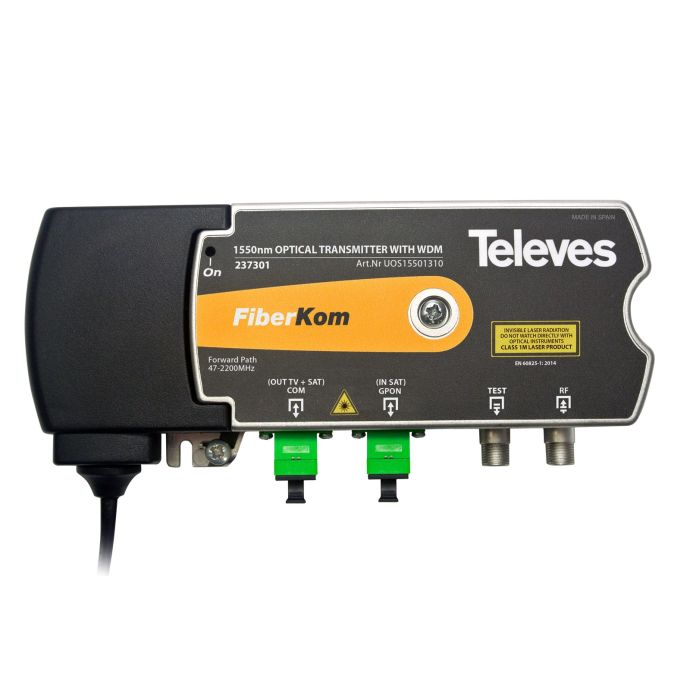

Transmitter TX FO 1550nm (TERR.) / 1310nm (SAT) SC / APC

SKU

TEL237301

Brands: Televes

Availability: On request

Delivery: 1 to 7 days

€393.23 Tax included

Fiber Optic Transmitter

The transmitter TX 237301 is a system that allows to distribute the content of an entire satellite and all the terrestrial band through a single fiber.

The 237301 transmitter receives the signal from an optical LNB (1310nm) and mixes with the terrestrial signal converted into the 1550nm window generating a single optical fiber output.

The quality of the conversion makes this device ideal in scenarios where the terrestrial band contains a large number of muxes.

This transmitter does not need any adjustment so its installation is very simple.

Details

The transmitter TX 237301 allows to transmit the satellite and terrestrial signal by a single fiber.

What technical features does the 237301 transmitter have?

Ideal for installations of optical LNB with high load of muxes DTT
No adjustments and wide dynamic margins
Testing and level indication
All-band optical reception

How does the 237301 transmitter stand out?

System with OLC (Optical Level Control), that automatically regulates its parameters to obtain a constant output level and independent of the load of channels
High output voltage, low power consumption
High sensitivity at 1550nm
Compatible with optical LNB systems

What technical specifications does the 237301 transmitter have?

RF parameters
Bandwidth	MHz	47 ... 2200
Flatness	dB	± 0,75 (47-1200MHz) ± 2,5 (47-1200MHz)
Input level	dBµV	79 (47-1200MHz) 42ch CENELEC 95 (950-2200MHz) DIB-VDE 0855/12
CNR/CSO/CTB	dBµV	>51/>60/>65
Optical output
Laser	Tipo	MQW-DBF
Output power	dBm	+6
Wavelength	nm	1550
General
Supply voltage	V~	99...253
Maximum power	W	4
Max. current consumption	mA	75 (99V) / 40 (253V)
Dimensions (xyz)	mm	185 x 80 x 35
Weight	g	400
IP protection index	IP	30
