1550nm optical transmitter SC / APC 4dbm

Availability: On request
1 to 7 days
Free shipping
(Iberian Peninsula)
€741.08 Tax included

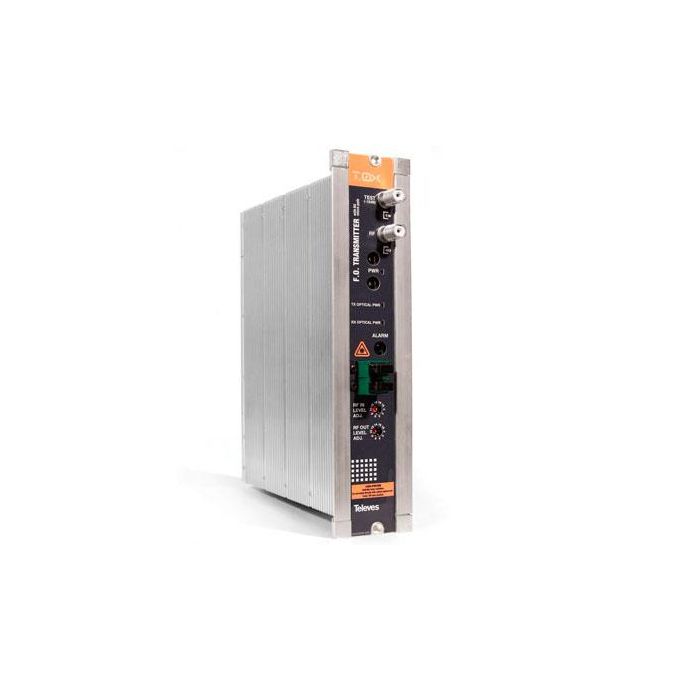

Televes 1550nm ''SC/APC'' 4dBM optical transmitter. Ref. 234305

Optical transmitter with SMATV compatible radiofrequency input, different power outputs, reaching a maximum of 10 dbm.

Radiofrequency input level control for adjusting quality parameters, control signals for monitoring the output optical signal and relay for implementing the optical power drop alarm.

With this equipment it is possible to send the television signal, both satellite and terrestrial, through fiber optics. The advantages of fiber optics are mainly its negligible attenuation, which allows the signal to be sent over longer distances, and also its immunity to electrical interference.

Simple to install, its optical connectors are SC/APC type and F type in RF.

It is used together with: Ref. 2335 (optical receiver) and Ref. 5629 (power supply).

1 to 7 days
Free shipping
(Iberian Peninsula)

Technical Specifications of Televes' 1550nm ''SC/APC'' 4dBM Optical Transmitter. Ref. 234305


RF parameters Frequency range MHz 47 - 2400
Flatness 47-1200 MHz dB ±0.5
950-2200 MHz ±2
Impedance Ohm 75
Input level RF dBμV 73 - 93
SAT 63 - 83
Manual gain adjustment dB 0 ... 14 (2dB steps)
C/N dB >51
CSO dB >60
CTB dB >60
Optical Laser type MQW - DFB
Wavelength nm 1550 ± 10
Output optical power dBm 5
General RF connectors type “F” female
Optical connector SC/APC
Consumption 12 Vdc mA 270
24 Vdc 155
Operating temperature ºC -5 ... +45
1 to 7 days
Free shipping
(Iberian Peninsula)
More Information
EAN 8424450167038
Color Silver
Product Brand Televes
FO Distribution FO Transmitter
Entorno Interior
