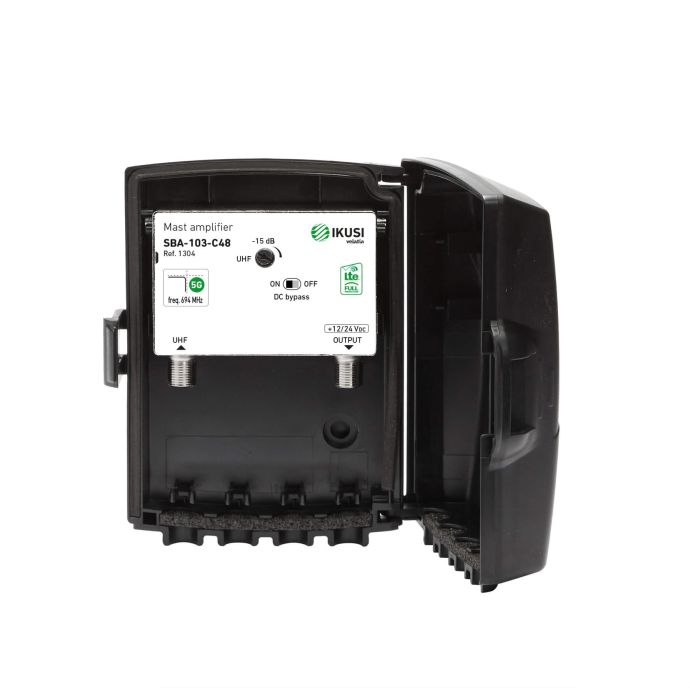

Mast Amplifier 34dB UHF LTE 5G Ikusi SBA-103-C48
Mast Amplifier 1x UHF 34dB LTE 5G Ikusi SBA-103-C48
Mast amplifier with 1 UHF input (470-694 MHz) with 34dB gain, adjustable -15dB, and 113dBuV maximum output. Adapted to the 2nd Digital Dividend with integrated 5G LTE filter.
Designed with a box for external installation on the antenna mast and an internal zamak box with type F connectors. Optimized to offer a high output power with a very low noise figure (3dB).
It admits passage of DC current to 12Vdc and 24Vdc to feed active DTT antennas.
SBA-103-C48 UHF Mast Amplifier with 34dB of gain and 5G LTE, for single-family homes
What technical specifications does the Ikusi 1304 Mast Amplifier have?
- Model: SBA-103-C48
- Reference: 1304
- Frequency band: 470-694 MHz
- Input: 1x UHF
- Output: 1
- Gain:> 34 dB
- Gain regulation: 0 - 15 dB
- Noise figure: <3 dB
- Output level: 113 dBuV (DIN 45004B IMD-60dB)
- Supply voltage: +12 / +24 Vdc - 60/70 mA
- Current pass: Yes
- Operating temperature: -10 ... +60 ºC
- Protection index: IP54
- Dimensions: 96 x 125 x 46 mm
- Weight: 0.370 kg
|Max. output level Ganancia (dB/uV)||113|
|Satellite signal supported||No|
