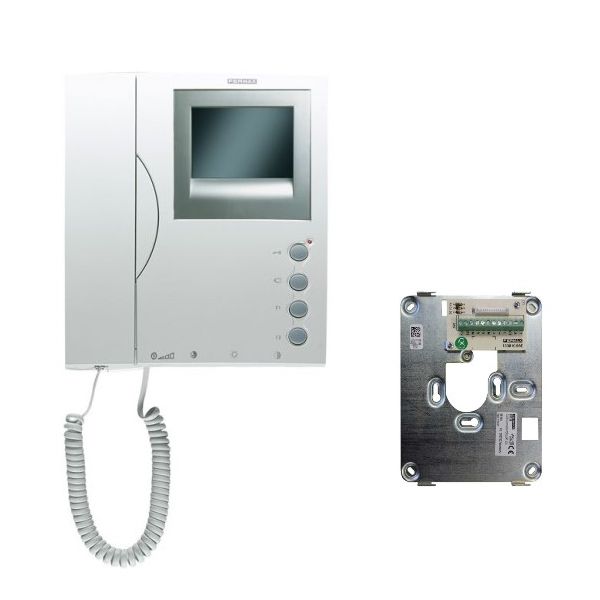

Monitor Kit 3.5'' 3305 + Loft VDS 3314 Connector by Fermax

SPECIFICATIONS 3305

3.5" TFT display.
Resolution: 480 (H) x 234 (V) lines.
The terminal incorporates a magnet in the handset area that allows the arm to be securely hung and fixed to the base. This prevents the arm from falling off during hanging, damaging the wall and also prevents it from causing damage to the installation due to incorrect hanging. Dimensions: 220x203x60 mm (height-width-depth). System power supply: 18 Vdc Door opener and concierge call button. Auto-on button for activation of main and secondary camera (sequentially) Call volume control Color, brightness and contrast control. On/off control Doorbell: for direct connection of the home call button to the monitor/phone. Two selectable ring tones. Two pushbuttons for additional functions (no function assigned). Private communication. Conversation secrecy. Consumption:
- idle: 8 mA
- active: 400 mA The telephone arm includes an inductive loop as standard, which interfaces with hearing devices for deaf people. The arm is identified with a blue label.
Technology: VDS
Weight: 0,883 kg
Packed product dimensions: 27,2x23,9x6,5 cm
EAN 13: 8424299033051

SPECIFICATIONS 3314

Technology: VDS
Weight: 0,306 kg
Packed product dimensions: 17,3x13,9x2,3 cm
EAN 13: 8424299033143
